The RED JACKET® 4" STP PLATFORM
The Red Jacket Submersible Turbine Pump (STP) platform delivers fast, reliable fuel flow for the lower cost of ownership. With a motor that is designed for high flow fueling infrastructure, The Red Jacket STPs optimize performance at your sites. They feature Red Jacket’s advanced packer manifold design, making them the fueling industry’s easiest and safest submersible pumps to install and service.
Built to Last
The Red Jacket STP solution optimizes fuel flow and dispensing. It is the foundation model that sets the standard for high throughput, high reliability fueling applications and is certified for use with the following fuels:
- 100% Diesel or Gasoline
- Ethanol concentrations up to 10%
- MTBE, ETBE, or TAME concentrations up to 20%
Built for Biofuels and Blends
In addition to fuel types supported by The Red Jacket STP, The Red Jacket AG STP is UL 79A and UL 79B certified for use with the following fuels:
- Biodiesel concentrations up to 100%
- Ethanol concentrations up to 85%
- Methanol concentrations up to 15%
- Jet Fuel and AVGAS
- Kerosene and Fuel Oil
Built to Combat Corrosion
The Red Armor® STP is compatible with the same fuel types as The Red Jacket AG STP, but also protects against:
- Acetic Acid corrosion in ethanol blended fuel sumps
- Microbial Growth in Tank (Ultra-Low Sulfur Diesel)
- Known Corrosive Environments

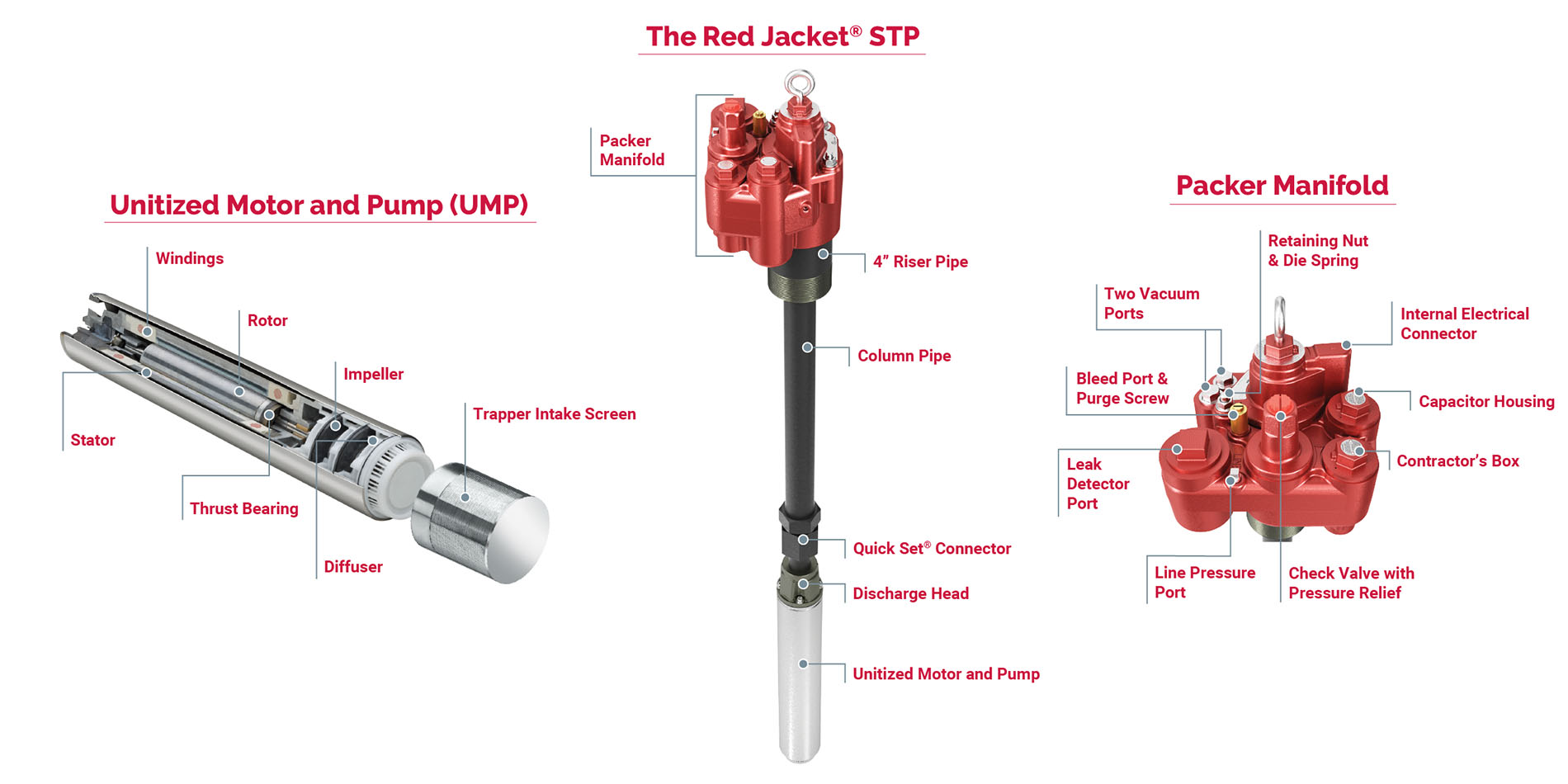

The Red Jacket STP Components
Download the Component GuideAdvanced Fuel Management
Flow Optimization
Monitor demand at the site and stage on additional pumps to ensure optimal fuel flow at all demand conditions.
System Redundancy
Manifold two Red Jacket STPs at sites with high throughput to increase flow rates and add redundancy.
Inventory Optimization
Configure your fueling system with Virtual Siphon to manage and optimize inventory within the storage tanks.
Intelligent Pump Control
Gain real-time visibility regarding the performance of your Red Jacket STP, make informed maintenance decisions, and ensure efficient service calls. Intelligent Pump Control (IPC) Software with Red Jacket Diagnostics runs on the TLS-450PLUS Automatic Tank Gauge (ATG), and communication flows between the ATG and STP through the IQ Smart Control Box.
Red Jacket Control Boxes

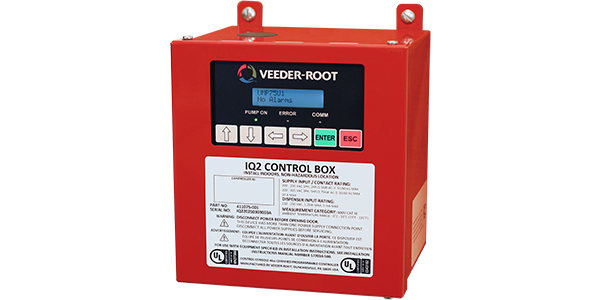

IQ Control Box
The Red Jacket IQ Control Box provides operators protection against downtime and allows for demand-based staging of multiple pumps to control fuel flow based on changing fuel demand.
Learn More
ISOTROL™ 1-8 Control Box
The Red Jacket ISOTROL 1-8 Control Box is our most versatile dispenser handle signal isolation system. It isolates handle signals between each dispenser and protects against wiring shorts and phasing issues.
Learn More
Standard Control Box
The Red Jacket Standard Control Box interfaces between the fuel dispenser and the turbine pump and has an indicator light that signals when a customer begins fueling.
Learn MoreThe Red Jacket STP Fuel Flow Pathway
The control box receives its electrical signal from the dispenser hook/handle to turn on the STP.
The motor propels fuel through the Unitized Motor Pump (UMP) shell by creating pressure or rotational energy. The diffuser collects and directs the flow of liquid into the bottom portion of the UMP while the impellers then sling the liquid outward and up through the UMP pathway.
Once fuel travels through the UMP it enters the column pipe. This piping is the conduit between the UMP and packer manifold by allowing fuel to pass through as well as carrying the electrical connection from the UMP to the packer manifold.
Fuel enters the packer manifold, whose main function is to keep the line primed via the check valve and discharge fuel to the piping infrastructure.
Red Jacket® 2 HP STP Fixed Speed Conversion Kit
Convert a FE Petro® 2 HP variable speed pump to a Veeder-Root Red Jacket 2 HP fixed speed pump with a single-phase control box today!
Learn More about the Red Jacket Conversion Kits
The Red Jacket STP CAD Files
- The Red Jacket STP with Pressurized Line Leak Detector [IGS]
- The Red Jacket STP with Pressurized Line Leak Detector [PDF]
- The Red Jacket STP with Mechanical Line Leak Detector [IGS]
- The Red Jacket STP with Mechanical Line Leak Detector [PDF]
- Red Jacket STP with Mechanical Line Leak Detector with Vacuum Breaker [IGS]
- Red Jacket STP with Mechanical Line Leak Detector with Vacuum Breaker [PDF]
- The Red Jacket STP with Riser [IGS]
- The Red Jacket STP with Riser [PDF]
