Why the Red Jacket IQ2 Smart Controller?

The Red Jacket IQ2 Smart Controller provides operators with real time status and diagnostics for monitoring their Submersible Turbine Pumps (STPs), ensuring site uptime and optimal fuel flow to customers. It features a full-text 2-line display screen providing visibility to STP status and descriptive alarms on the controller. Intelligently monitor pump performance through advanced analytical reporting.

High Performance

IQ2 optimizes fuel flow rates and STP operation through continuous monitoring of pump and motor parameters. With IQ2:

  • Use the Helper Mode to set power thresholds at which STPs will turn on as needed to achieve desired flow rates during peak demand
  • Protect critical assets quickly with < 10 milliseconds (ms) reaction time
  • Controls all The Red Jacket and Maxxum® liquid fuel STP motor sizes: 3/4, 1.5, 2, 4, and 5 Horsepower (HP), single- and three-phase


Easy Installation & Serviceability

Wiring is easily accessible through the front panel of the controller, versus competitive options through the side of the controller, enabling technicians to more efficiently and safely service the IQ2.

  • Select the UMP model being used to set appropriate parameters, such as motor performance and alarm thresholds
  • Enhanced controller interface and configuration capabilities through front panel keypad

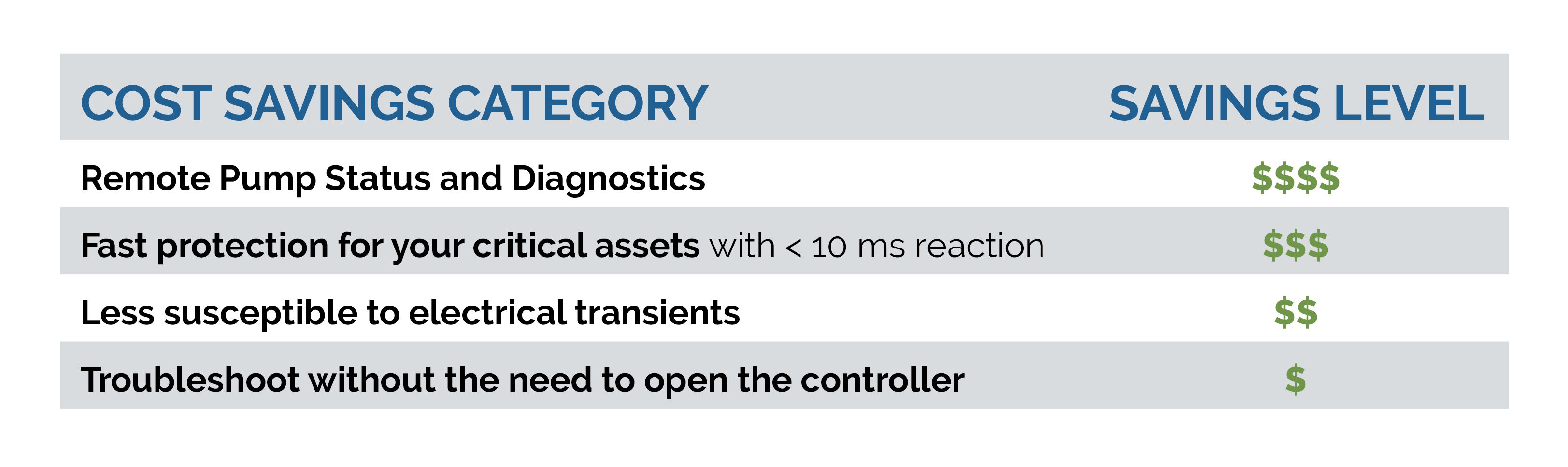

Smart Controller Cost Savings

Lower Cost of Ownership

The enhanced diagnostic feature set of IQ2 along with its high performance and reliability, reduces labor costs for servicing the controller and maximizes site uptime.

Pump Status & Advanced Diagnostics

Streamline service calls through precise monitoring and diagnostics of Red Jacket equipment through the IQ2 and TLS-450PLUS Automatic Tank Gauge (ATG).

  • Diagnostics & Monitoring On-Site
  • Enhanced Automation & Statistics with the TLS-450PLUS ATG through Intelligent Pump Control (IPC)
  • Power Management Insights


IQ2 Modes of Operation

Explore the flexible modes of operation that allow you to tailor your STP network for optimal performance:

  • Standalone Mode: A single IQ2 operates independently with an incoming hook signal, with the capability to connect up to 31 IQ2s on a single RS-485 network.
  • Direct Mode: Network up to 8 IQ2s to a single manifold, where pumping starts with the lowest addressed IQ2, activating additional pumps in ascending order to ensure a high flow rate.
  • Sequential Operating Mode: Similar to Direct Mode, but with alternating pump activation to minimize wear on the primary pump.
  • ATG Operating Mode: Integrate your STP network with the TLS-450PLUS ATG using Intelligent Pump Control (IPC), supporting up to 31 IQ2s across 32 manifolds. This mode features MODBUS control from the ATG with no hook-switch connections required, allowing for configurations like In-Tank and Across-Tank Staging. Plus, the helper function keeps pumps idle during low demand, activating only when necessary to maintain peak flow rates.

Product Form

Product NumberDescription
IQ2 for New Installations
0411075-001IQ2 Smart Controller
0411066-001Adaptor & Terminator Kit
IQ2 for Existing Red Jacket Locations
0411067-001Kit - Terminators, 2pk
0411068-001Kit - Replacement Contactor
0411069-001Kit - Replacement Fuses
0411070-001Kit - Replacement Display Assembly




Specifications

Dimensions (L, W, D)10.5” x 8.24” x 7.08” (26.67 x 20.93 x 17.98 cm)
Handle Voltage 115 V or 230 V
Power Relay• 200 - 250 VAC 1P, 2 HP / 1.5 kW AC-3, 50/60 Hz MAX
• 200 - 415 VAC 3P, 5 HP / 3.75 kW AC-3, 50/60 Hz MAX
• 20 A per phase MAX
Terminal LugSize 8 - 14 AWG wire
Network ConnectivityUp to 31 IQ2 Smart Controllers can be connected on a single network
Output Load Ratings• 200 - 250 VAC 1P, 2 HP / 1.5 kW AC-3, 50/60 Hz MAX
• 200 - 415 VAC 3P, 5 HP / 3.75 kW AC-3, 50/60 Hz MAX
• 20 A per phase MAX
Dispenser Interface Ratings• 110 - 250 VAC, 1.25 W MAX
• 5 mA MAX
Environmental Ratings• Indoor Use Only in Non-Hazardous Location
• Ambient Temperature: 23 to 131°F (-5 to 55°C)
• Relative Humidity: 0-95% (non-condensing)
• Altitude: 9,842’ (3,000 m)
• Mains Supply Voltage Fluctuations: ±10%
• Overvoltage Category 600V CATIII
Approvals• UL 1238
• IEC 61010-1
