Real-time access to accurate inventory data

These ATGs provide real-time access and automated alerts to critical site information anywhere in the world.  Ensure that your site is running at peak performance with a TLS4 or TLS4B ATG. The TLS4 and TLS4B tank level sensors eliminate manual dipping while providing a state-of-the-art interface with a web-based system, streamlining your wet stock management.

PERFORMANCE
PERFORMANCE

The TLS4 and TLS4B Automatic Tank Gauges are premier fuel inventory management solutions. They deliver accurate, crucial information with streamlined inventory and compliance reporting.

PROTECTION
PROTECTION

The Veeder-Root TLS4 and TLS4B monitoring systems protect your fuel assets using sensors, probes and advanced software solutions to deliver accurate Underground Storage Tank (UST) and Aboveground Storage Tank (AST) information.

PROFITABILITY
PROFITABILITY

The compact and powerful monitoring systems are extremely easy to use. View, configure, and control these ATGs using the graphical user interface or access remotely to manage multiple locations to improve efficiency and reliability.

PARTNERSHIP
PARTNERSHIP

Veeder-Root’s proven company history, combined with the highest precision levels in our wet stock management tools, delivers results that matter.

Remote Connectivity Options for the TLS4 and TLS4B ATGS

WEB-ENABLED

WEB-ENABLED

Take action to resolve on site issues remotely by connecting to settings and diagnostics on your automatic tank gauge using the web-enabled feature. View your site's status, run reports and make adjustments without being on site.

Learn More

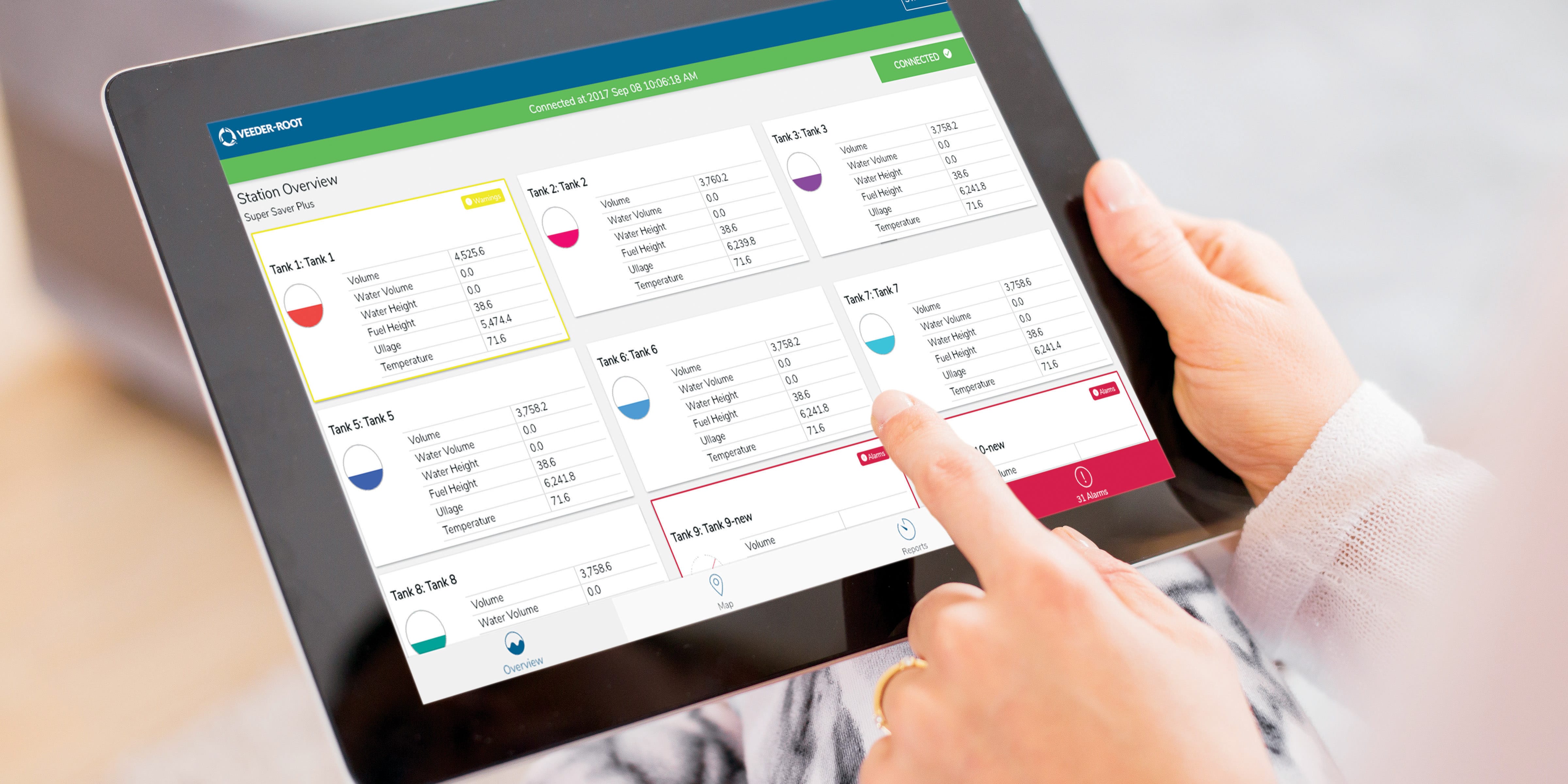

THE REMOTE VIEW

THE REMOTE VIEW

THE REMOVE VIEW application provides a real-time connection to fuel inventory and alarms. This app is available for Android and Apple iOS and is formatted specifically for a better experience on tablets for in store or site personnel.

Learn More

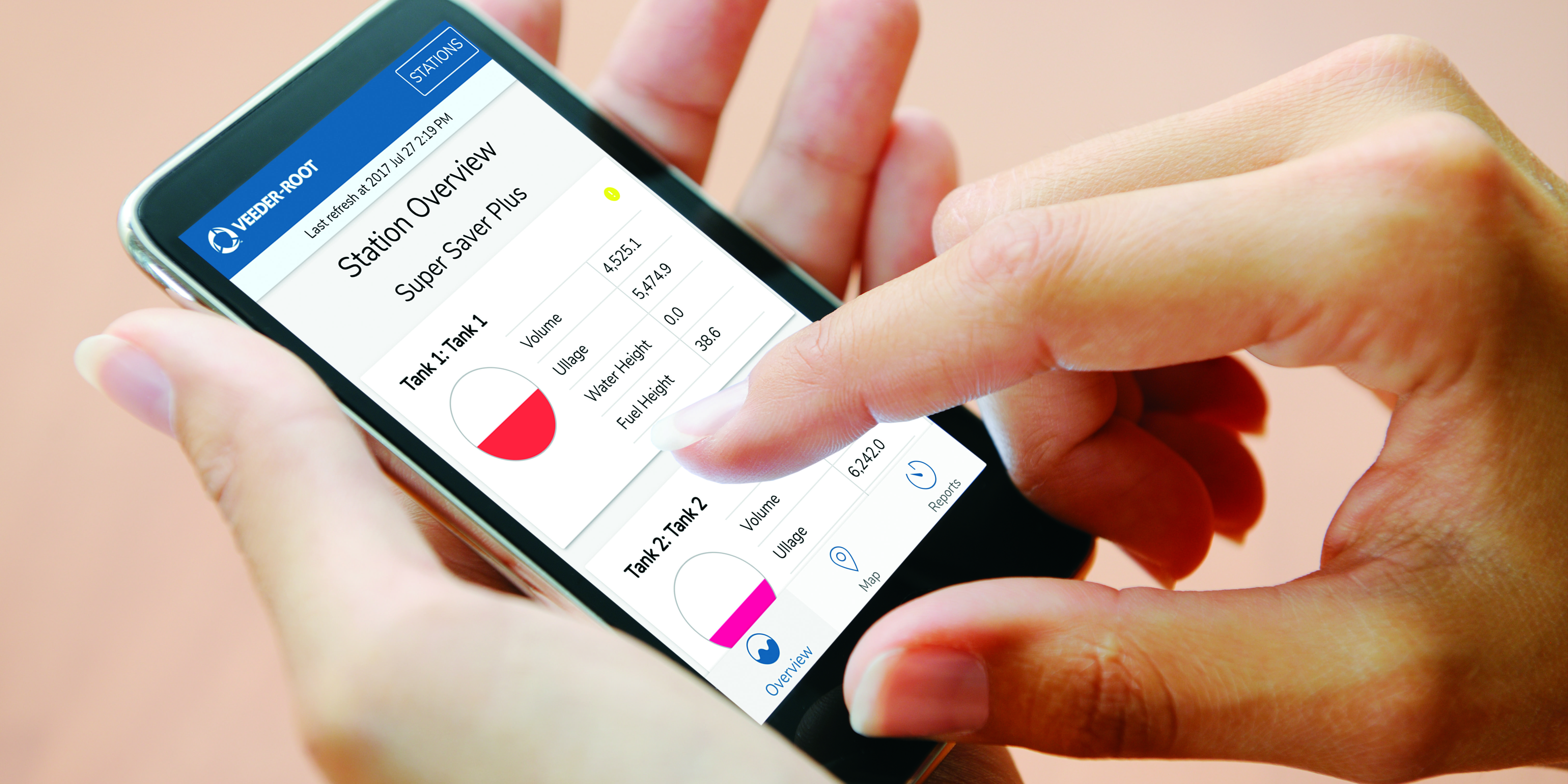

THE PLUS VIEW

THE PLUS VIEW

THE PLUS VIEW is a free mobile app for Android and Apple iOS that connects you directly to tank gauge data no matter where you are. Now Managers and owners can easily monitor their fuel site inventory and alarms while they are off site.

Learn More

Product Form

TLS4 Automatic Tank Gauge

Part Number



Description

Notes





0333434-001



TLS4 Application Software, 12 Universal Inputs

Must order one per console





0860190-020



TLS4 Console, Color Touch Screen Display, EDIM, UL







0860190-010



TLS4 Console, No Display, EDIM, UL







0860190-120



TLS4 Console, Color Touch Screen Display, CDIM, UL







0860190-110



TLS4 Console, No Display, CDIM, UL







TLS4B Automatic Tank Gauge

Part Number



Description

Notes





0333435-001



TLS4B Application Software, 6 Universal Inputs

Must order one per console





0860196-020



TLS4B Console, Color Touch Screen Display, EDIM, UL







0860196-010



TLS4B Console, No Display, EDIM, UL







Software Enhancements

Part Number



Description

Notes





0333410-015



Static In-Tank Leak Detection (SLD), for USTs only

Feature Enhancement Software for TLS4 and TLS4B





0333410-006



Continuous Statistical Leak Detection (CSLD), for USTs only

Feature Enhancement Software available for TLS4 only





0333410-012



Business Inventory Reconciliation (BIR)/Hourly Reconciliation Mode (HRM)/Accuchart

Feature Enhancement Software for TLS4 and TLS4B





0333410-018



Timed Sudden Loss Detection

Feature Enhancement Software for TLS4 and TLS4B





Next Level Tank Gauge Security

With frequent software updates, segmented and partitioned ports, custom user access, and an iterative development process built around maintaining security, the TLS4 and TLS4B Automatic Tank Gauges are designed to keep your data secure.

TLS4  & TLS4B Automatic Tank Gauge Specifications

Console Features

TLS4
(EXPANDABLE)

TLS4B

System Capacities

Universal Probe & Sensor Inputs

Maximum # of Probes

12

6

Maximum # of Intrinsically Safe Probes & Sensors

12/76 **

6

TLS-XB Expansion Box

N/A

Interface





Color Display

7” WVGA

7” WVGA

No Display Option

Printer Option

Communications





Configurable RS-232/485 Serial Ports

2

2

Ethernet Ports

3

1

Ethernet Networks

2

1

External USB 2.0 ports

2

2

Inventory Control

Hourly Reconciliation Monitoring (HRM) – Optional

Timed Sudden Loss – Optional

Business Inventory Reconciliation (BIR) – Optional

Tank Calibration

AccuChart – Optional

In-Tank Leak Detection

Static Leak Detection (SLD)

Continuous Statistical Line Leak Detection (CSLD) – Optional

N/A

Digital Pressurized Line Leak Detection (DPLLD) – Optional

N/A

N/A

Additional Functionality

3 Years Minimum Data Storage

Data Logger Built-in

Centralized Device Management (CDM) – Optional

Free Remote Apps (iOS, Android) for Smart Phones and Tablets

Web-Enabled Remote Connectivity

Work Flow Wizard

Contextual Embedded HELP

Phase Separation Detection

Density Monitoring

Mag-Flex Tall Tank AST Monitoring

System Specifications





Operating Temperature

32°F to 122°F (0°C to 50°C)

32°F to 122°F (0°C to 50°C)

Storage Temperature

-40°F to 158°F (-40°C to 70°C )

-40°F to 158°F (-40°C to 70°C )

Approximate External Dimensions

12.99" x 7.87" x 3.54"
33cm x 20cm x 9cm

12.99" x 7.87" x 3.54"
33cm x 20cm x 9cm

Safety Approval Groups





UL/cUL listed

ATEX

IECEx

NEPSI

FCC

EMC

PESO



** TLS4 can be connected to a maximum of one TLS-XB Expansion Box.
