Inventory control with optional water and leak detection

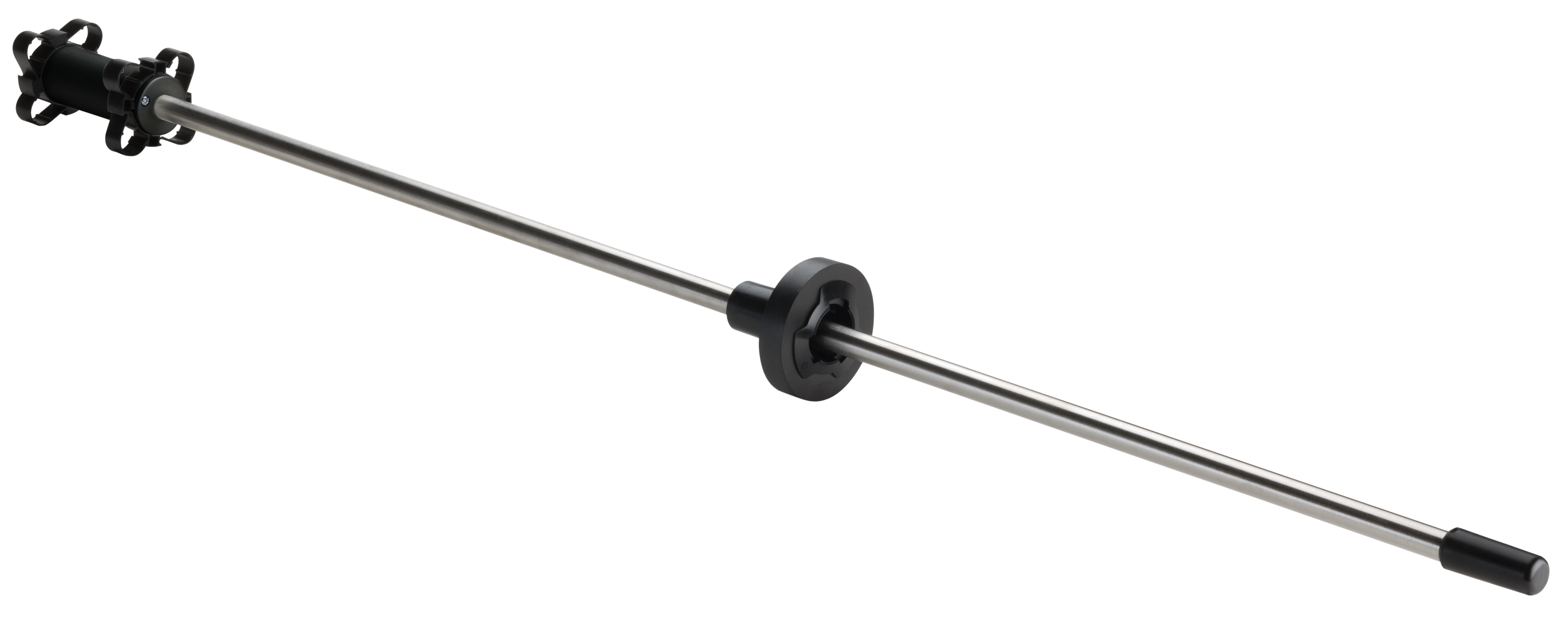

The Veeder-Root Magnetostrictive (MAG) Plus Probe is for precision inventory control with the options for water and leak detection. It is constructed from stainless steel tubing and a high-grade polymer canister for use with a variety of fluids in both aboveground (AST) and underground (UST) storage tank applications.

Designed with performance in mind

Certified for inventory control, and in-tank leak detection in gasoline, diesel and a wide variety of other approved fluids. This in-tank probe solution is certified to exceed U.S. EPA performance standards and can accommodate 2 and 4-inch float kits. The MAG Plus is a high-quality long-lasting product. It can be ordered as inventory control only, 0.1 or 0.2 gallon per hour leak detection models, and all can be ordered with or without water detection.

Our MAG Plus Probes provide the most reliable solution in the industry to meet the challenging environments in industrial, commercial, and retail applications, while also providing peak performance in an array of liquid products.

This probe can accommodate a wide range of tank shapes and sizes, such as all small rectangular and cylindrical ASTs and USTs that don’t exceed 12’ in diameter. It is also available in custom lengths as well.

Magnetostrictive sensing technology is an integral component to a complete fuel management system solution. It provides underground storage tank owners visibility to measure and identify multiple liquid readings such as height, liquid temperature, and water. This leak detection probe uses a proven algorithm that supports the increasing demand for reliable in-tank leak detection, assisting operators with their daily, monthly, and yearly compliance management.

Product Form

MAG Plus Probe with Water and Leak Detection

Product Number

Description

Certification

846397-1XX

MAG Plus 0.1 GPH Stainless Steel In-Tank Probe with High Grade Polymer Canister and Water Detection

UL

846367-1XX

MAG Plus Stainless Steel 0.1 GPH In-Tank Probe with High Grade Polymer Canister and Water Detection

ATEX

846397-2XX

MAG Plus Stainless Steel 0.2 GPH In-Tank Probe with High Grade Polymer Canister and Water Detection

UL

846367-2XX

MAG Plus Stainless Steel 0.2 GPH In-Tank Probe with High Grade Polymer Canister and Water Detection

ATEX

MAG Plus Probe with Water Detection and No Leak Detection

Product Number

Description

Certification

846397-3XX

MAG Plus Stainless Steel In-Tank Inventory Only Probe with High Grade Polymer Canister, Water Detection

UL

846367-3XX

MAG Plus Stainless Steel In-Tank Inventory Only Probe with High Grade Polymer Canister, Water Detection

ATEX

MAG Plus Probe with Leak Detection and No Water Detection
Recommended for use with alternative fluids (i.e., windshield washer fluid, DEF)

Product Number

Description

Certification

846397-6XX

MAG Plus Stainless Steel In-Tank Inventory Only Probe with High Grade Polymer Canister, No Water Detection UL

846367-6XX

MAG Plus Stainless Steel In-Tank Inventory Only Probe with High Grade Polymer Canister, No Water Detection ATEX

846397-4XX

 MAG Plus Stainless Steel In-Tank Probe with High Grade Polymer Canister, 0.1 GPH, No Water Detection

UL

846367-4XX

MAG Plus Stainless Steel In-Tank Probe with High Grade Polymer Canister, 0.1 GPH, No Water Detection ATEX
846397-5XX MAG Plus Stainless Steel In-Tank Probes with High Grade Polymer Canister, 0.2 GPH, No Water Detection UL
846367-5XX MAG Plus Stainless Steel In-Tank Probes with High Grade Polymer Canister, 0.2 GPH, No Water Detection ATEX

Key Features

  • Noncorrosive, stainless-steel tubing for long-lasting fuel monitoring
  • Compatible with gasoline, diesel, and other approved alternative fluids
  • Precise multi-point temperature sensing for inventory control and optional in-tank leak detection
  • Provides fast, accurate inventory data, including water, when available to protect your fuel inventory investment
  • 2” float kit option, providing lower levels of product detection
  • Certified performance for inventory control and in-tank leak detection in gasoline, diesel, and many more material products

Specifications

Probe Type

Test Type

P(D)

P(FA)

Test Time

MAG Plus Probe

0.1 GPH / 0.38 LPH

99%

1%

3 Hours

MAG Plus Probe

0.2 GPH / 0.76 LPH

99%

<0.1%

2 Hours

MAG Plus with CSLD

0.2 GPH / 0.76 LPH

99%

<0.1%

Continuous
