HydrX is designed to be installed into new to industry or existing sites and is compatible with both Veeder-Root and FE Petro® STPs.

This system is comprised of a main Fuel Conditioner Kit, Water Intake Device (WID), Guide Tube, and Installation Kit, along with a series of accessories and replacement parts that allow you to configure a system that meets your specific needs at the site.



Accessories

Alignment Bar

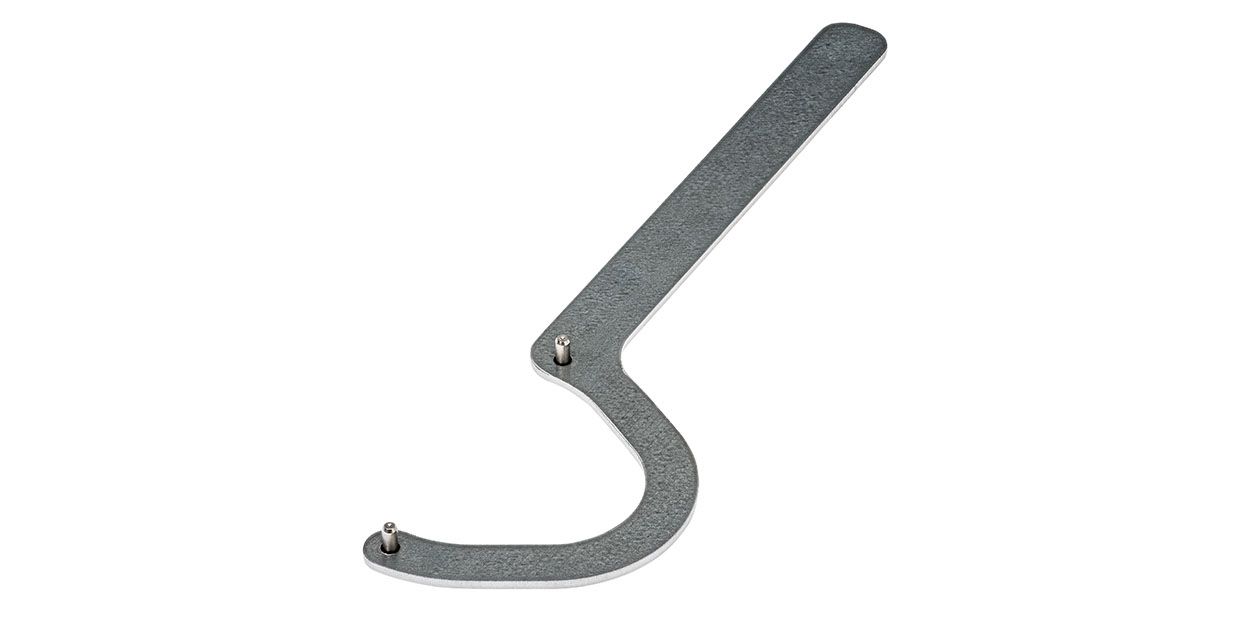

The Alignment Bar is a custom hand tool used to rotate the Guide Tube to the proper orientation. Two precision fit dowels align with mating holes on the Guide Tube Flange. The Alignment Bar is reusable on subsequent installations.

Part NumberDescription
0330020-869Kit – Alignment Bar



Hose End Adapter

90° Hose End Adapter Kit

The 90° Hose End Adapter Kit allows for the stainless steel braided hoses to mate with the manifold at a 90° angle. This saves space in situations where the manifold is against the wall of the sump or other components.

Part NumberDescription
0330020-881Kit – 90" Hose End Adapter



Mounting Rail Extension Kit

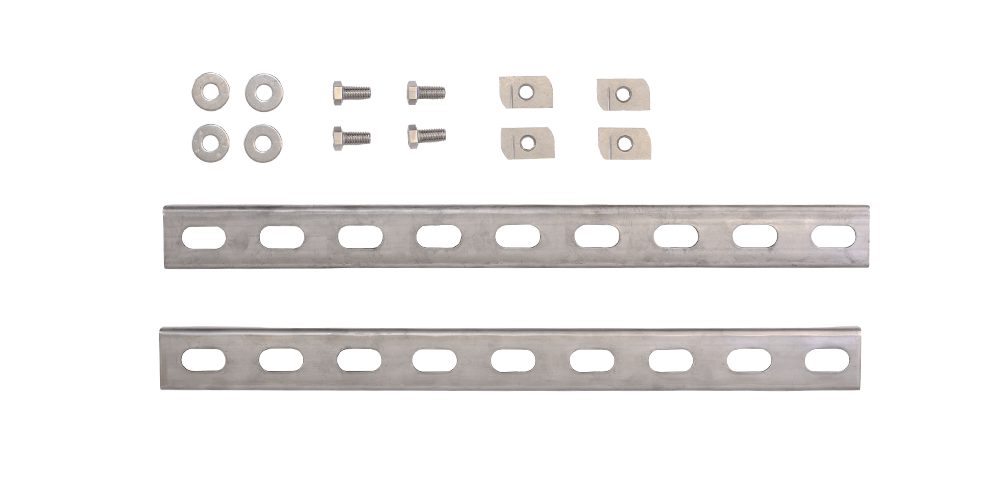

The Fuel Conditioner is clamped to the WID Riser in typical applications. When sufficient space is not available around the riser, the Mounting Rail Extension Kit can be used to offset the Fuel Conditioner from the WID Riser. The kit can be used to offset the Fuel Conditioner by up to 12”. It includes two stainless steel channels and mounting hardware.

Part NumberDescription
0330020-893Kit – Mounting Rail Extension



Veeder Mounting Rail Extension Kit

REPLACEMENT PARTS

The HydrX Fuel Conditioning System is designed for permanent installation in the sump. Serviceable components of the system are available as replacement parts.

*Denotes critical spares, recommended to have these on hand.

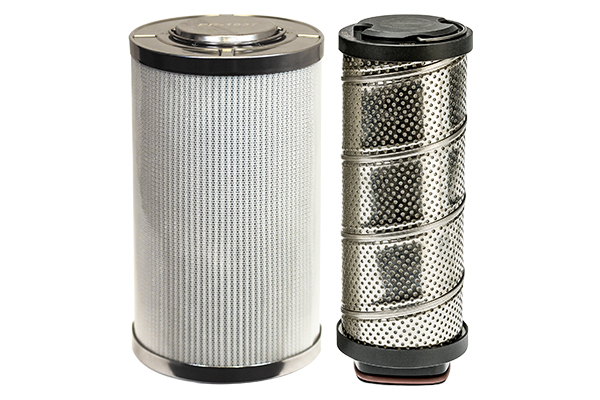

Veeder HydrX Conditioner Filter Cartridge

Filter Cartridges & O-Rings

The Fuel Conditioning System will monitor and display anticipated filter life, making maintenance schedules predictable. The filters have been engineered for optimal life; however, filter life is directly correlated to the amount of sediment and water in the tank and will vary by site. Typical installations are expected to require one filter change every 12-18 months.

The filter kits include the inlet and outlet filters, replacement O-Rings, O-Ring Grease, and an O-Ring Pick. HydrX 500D uses 0330020-868 and HydrX 250D uses 0330020-904. The O-Rings, O-Ring Grease, and O-Ring Pick are also sold separately. HydrX 500D uses 0330020-789 and HydrX 250D uses 0330020-905.

Part NumberDescription

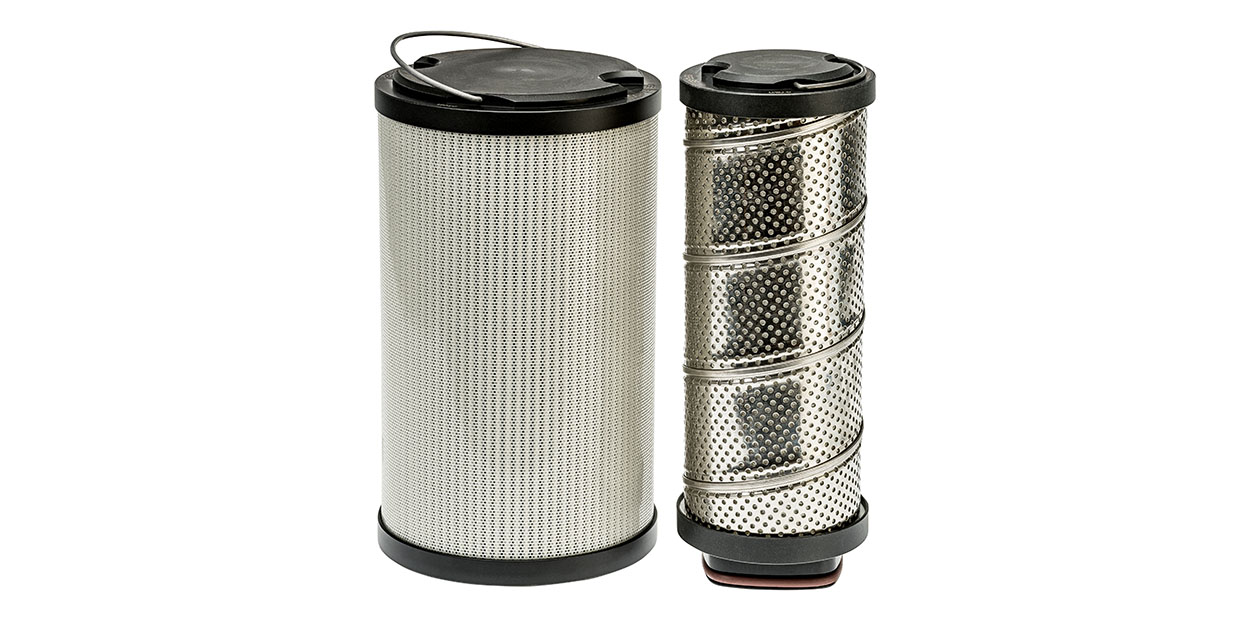

0330020-868Kit – Fuel Conditioner Filter Cartridges*
0330020-879Kit – Fuel Conditioner O-Rings
0330020-904Kit – Fuel Conditioner Filter Cartridges – SAE Seals*
0330020-905Kit – Fuel Conditioner O-Rings – SAE Seals



Hose Connections

Hose Connections enable the transfer of fluid between the various system components. Each hose and pressure port adapter are serviceable and sold separately. In situations where there is minimal clearance within the sump, the 90-degree hose adapters should be used.

Part NumberDescription

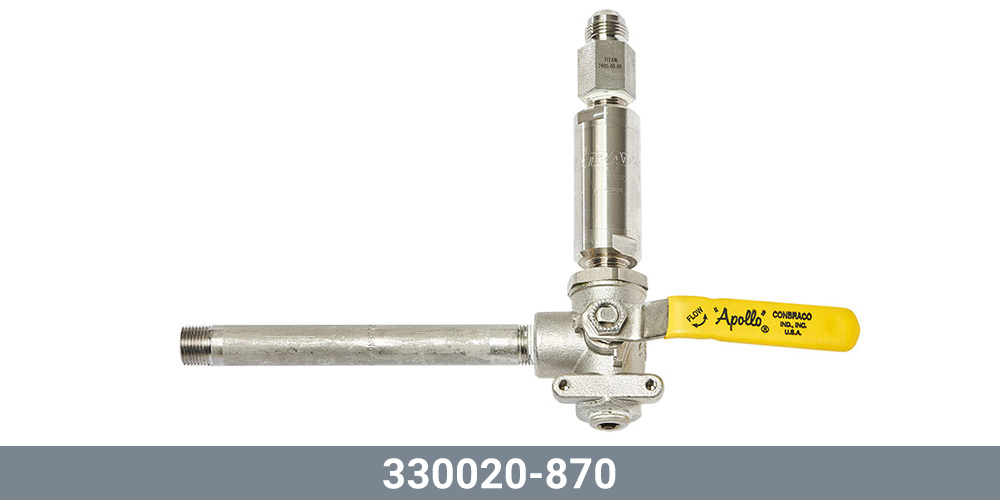

0330020-870 Kit – FE Siphon Jet Access Port Adapter Assembly

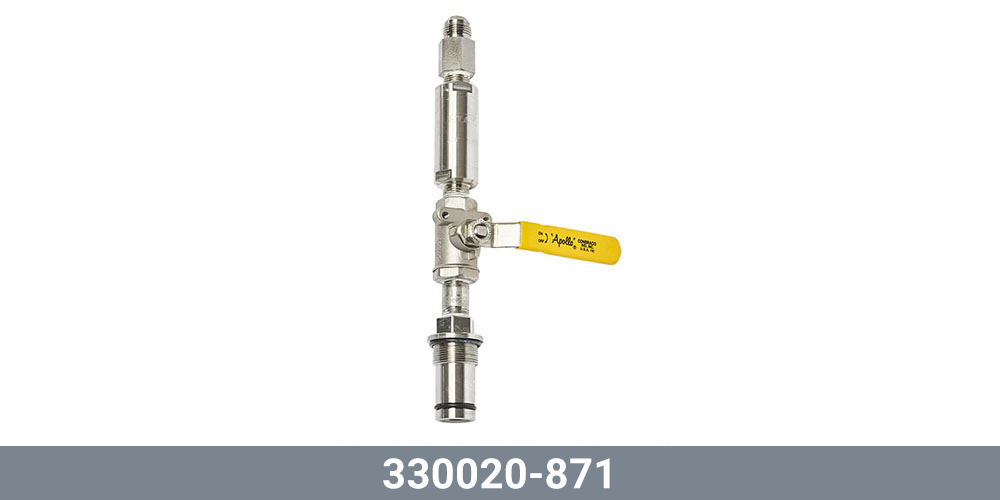

0330020-871Kit – RJ Siphon Port Adapter Assembly

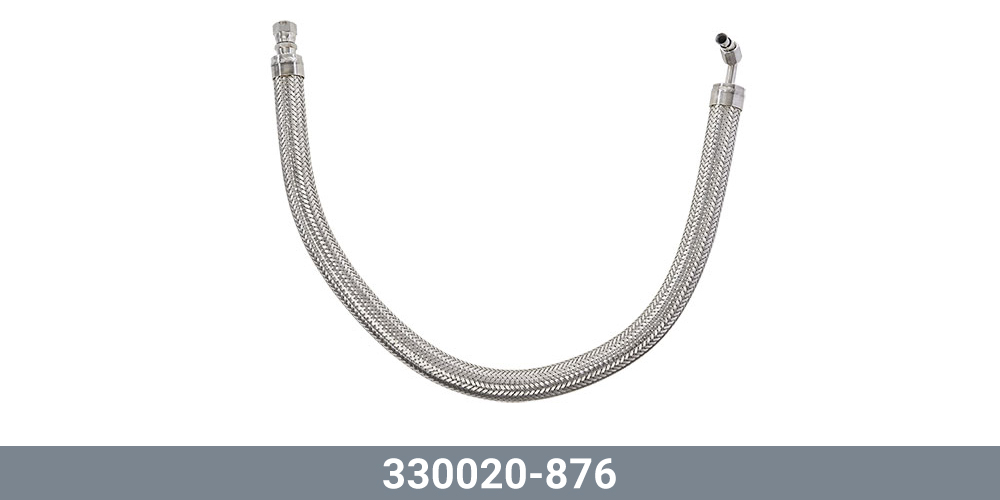

0330020-876 Kit – Tank Return Hose

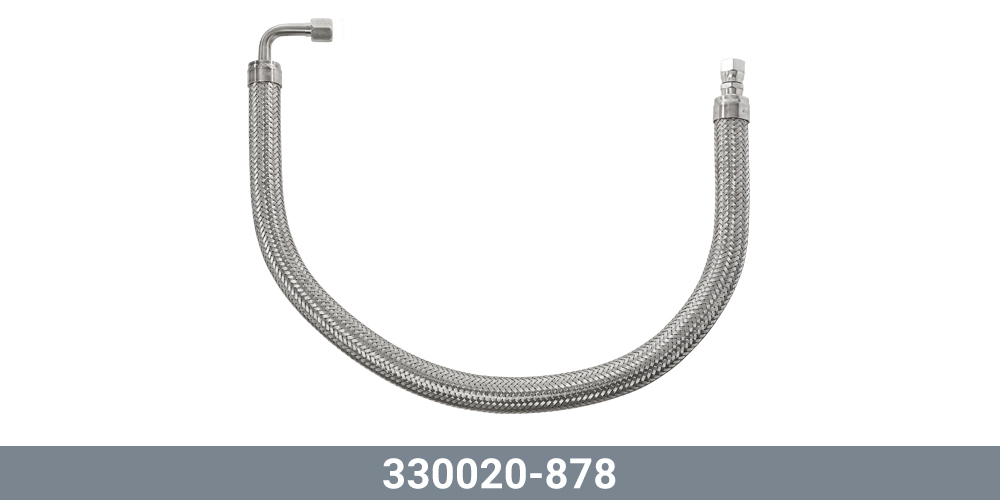

0330020-878 Kit – Manifold Hose

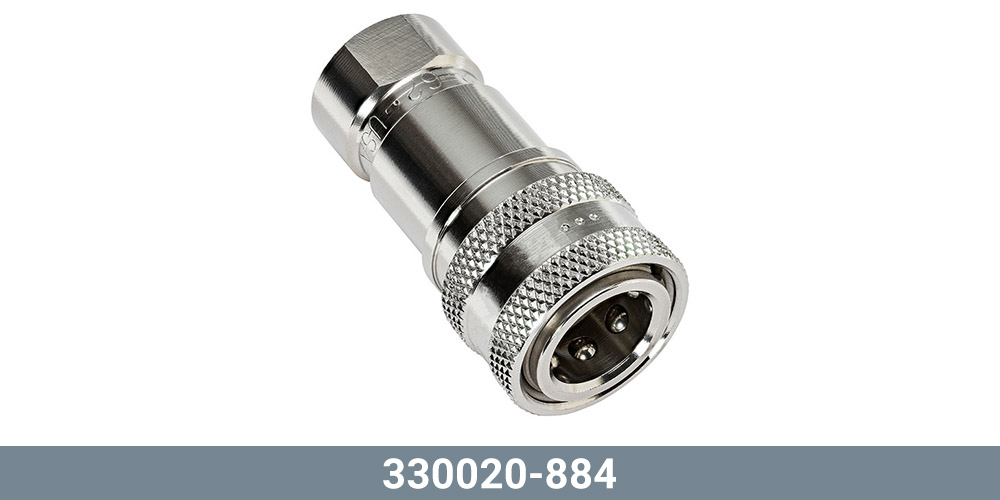

0330020-884 Kit – Water Drain Quick Coupling

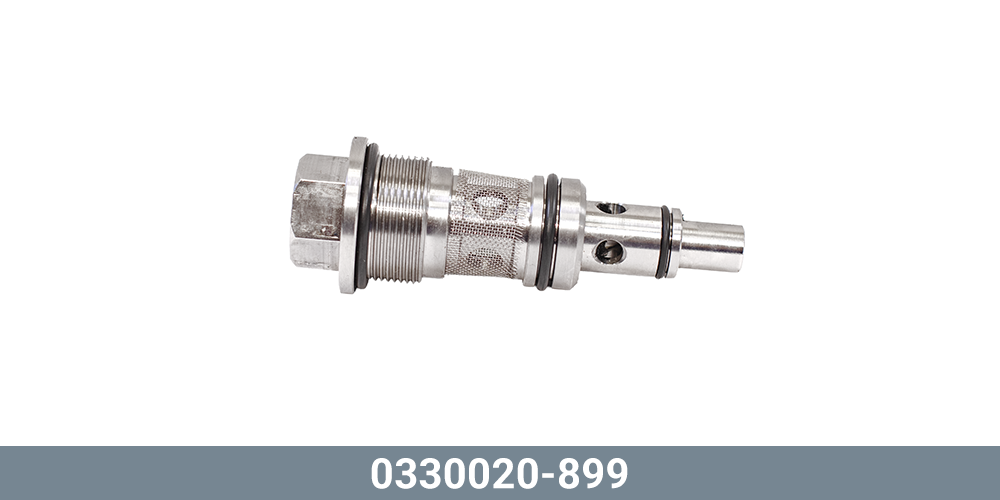

0330020-899 Kit – HydrX Siphon Cartridge*

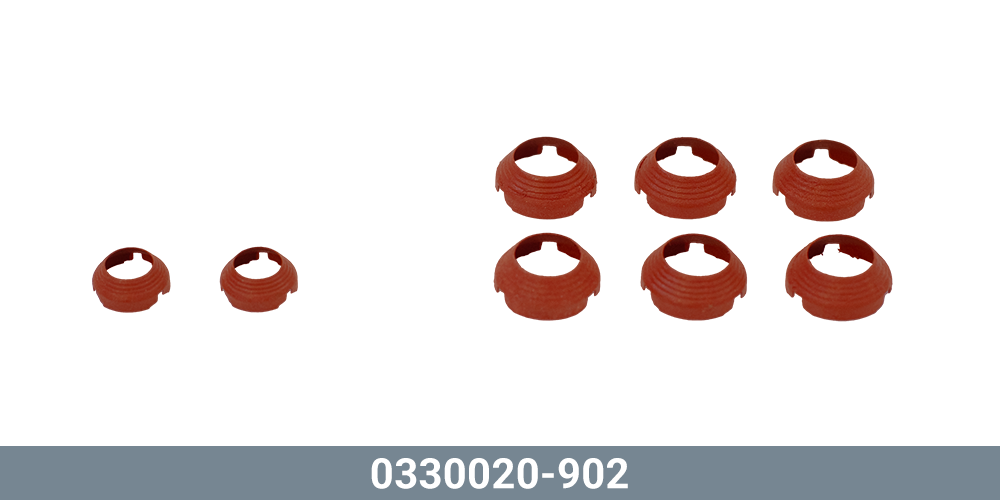

0330020-902 Kit – Flaretite Seal*

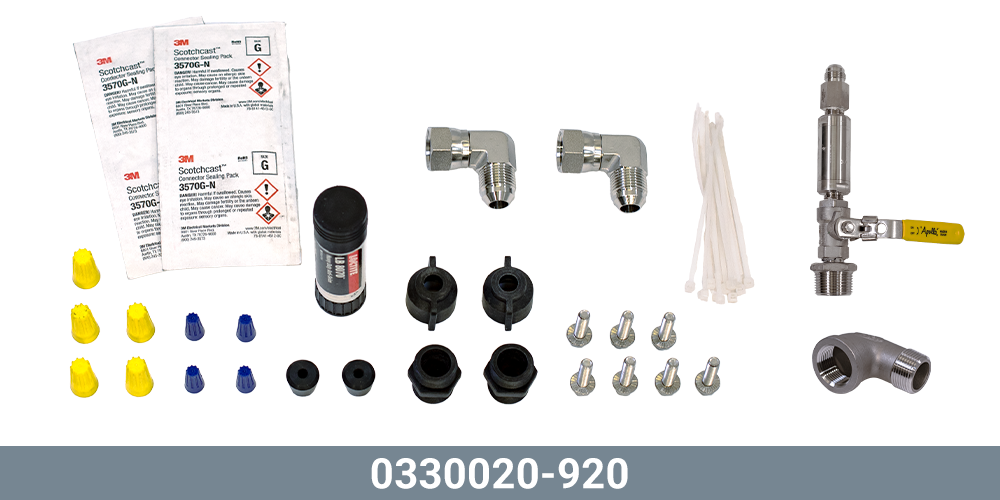

0330020-920Kit – RJ Maxxum® Siphon Port Adapter Assembly



Veeder Siphon Adapter 39
Veeder Siphon Adapter 42
Veeder Tank Return Hose
Veeder Manifold Hose
Veeder Water Drain
Veeder Siphon Catridge Kit
Veeder Flaretite seals
Veeder RJ Maxxum Siphon Port Adapter Assembly Kit
Veeder Kit Water Float Diesel
Veeder Pressure Sensor
Veeder Sensor Kit
Veeder Value Service Kit
Veeder Inlet Valve Service
Veeder Outlet Value Service

Sensors & Valves

The sensors and valves within HydrX enable intelligent operation of the system. Each component is serviceable and sold separately.

Part NumberDescription

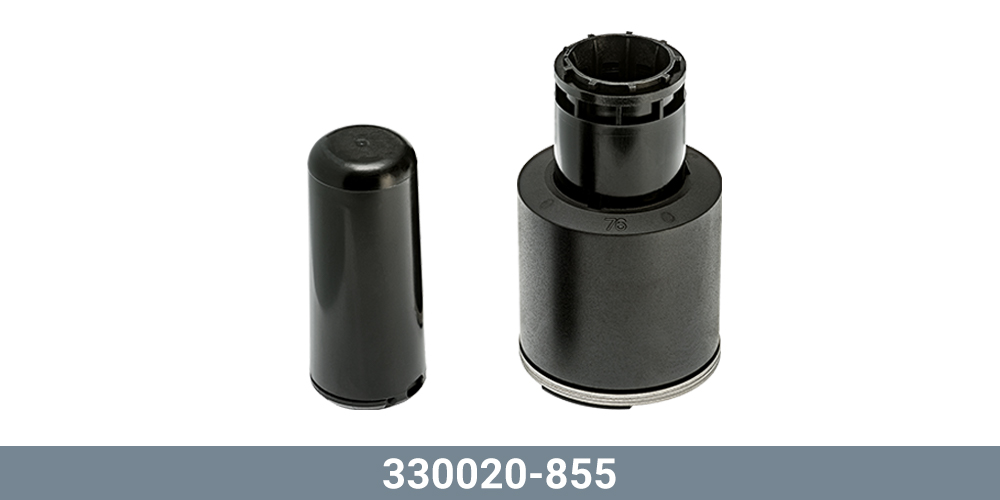

0330020-855 Kit – Water Float, Diesel

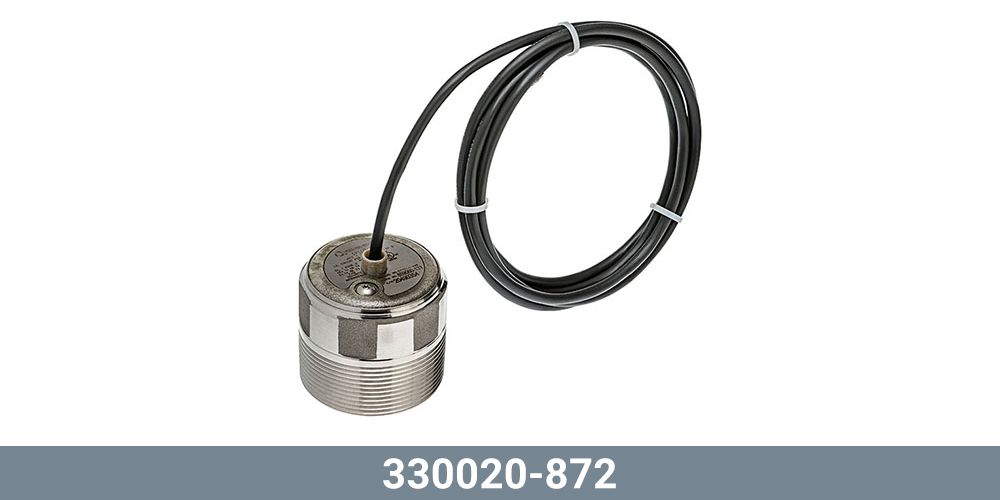

0330020-872 Kit – Replacement Pressure Sensor*

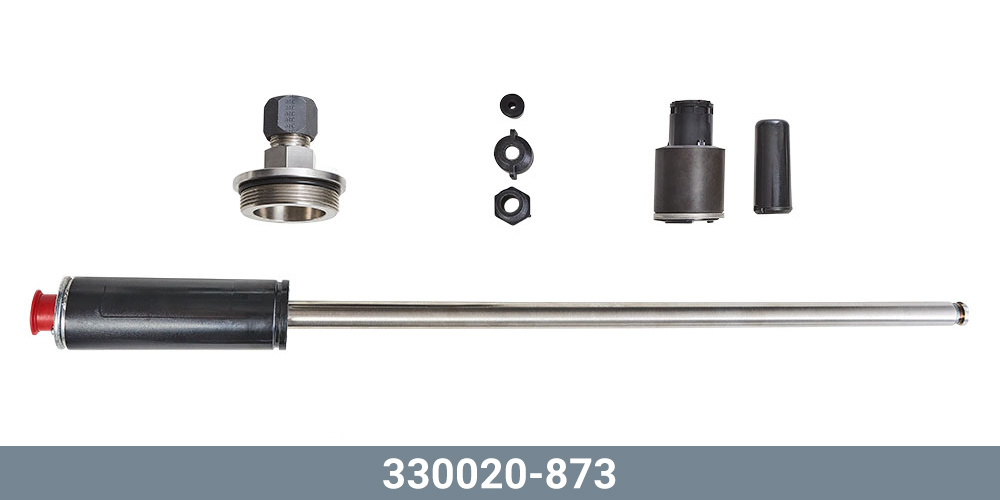

0330020-873 Kit – Replacement Probe, HydrX 500D
0330020-903 Kit – Replacement Probe, HydrX 250D

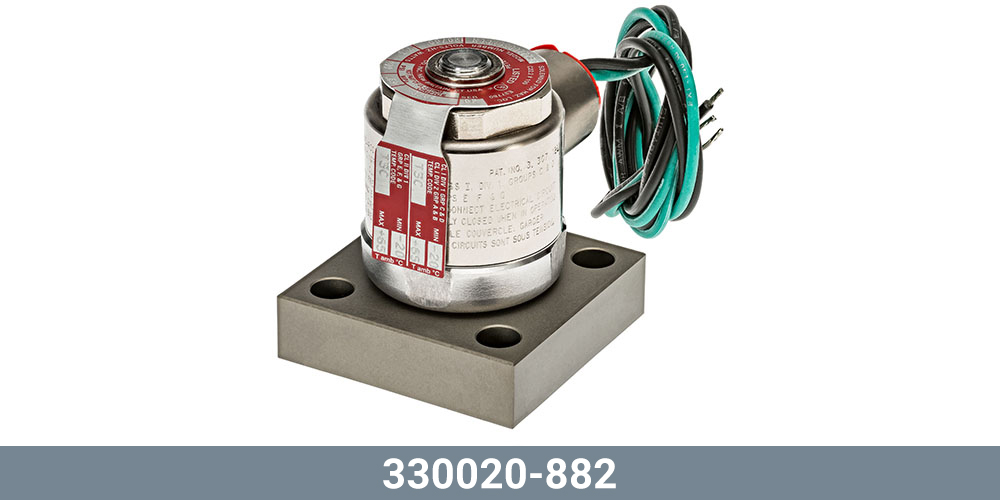

0330020-882 Kit – Inlet Valve Service – 120VAC/60Hz/Single Phase/UL*

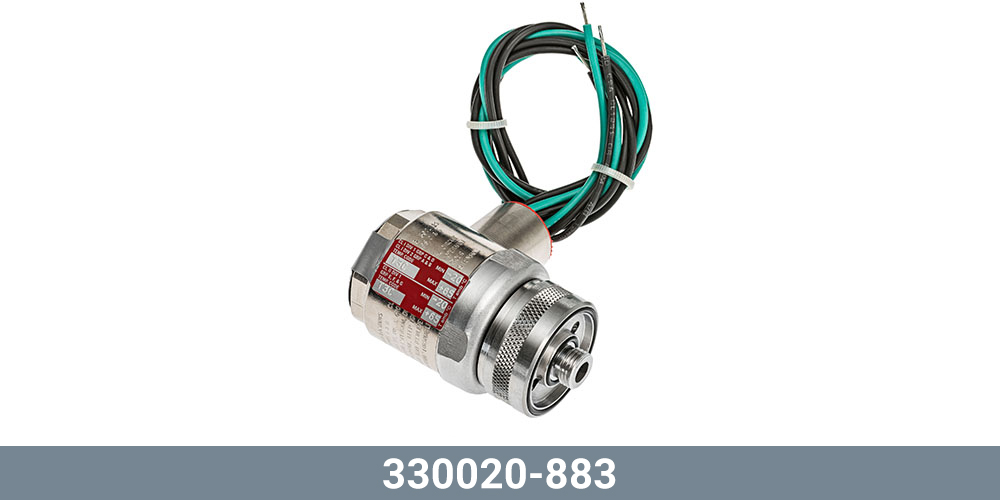

0330020-883 Kit – Outlet Valve Service – 120VAC/60Hz/Single Phase/UL*
