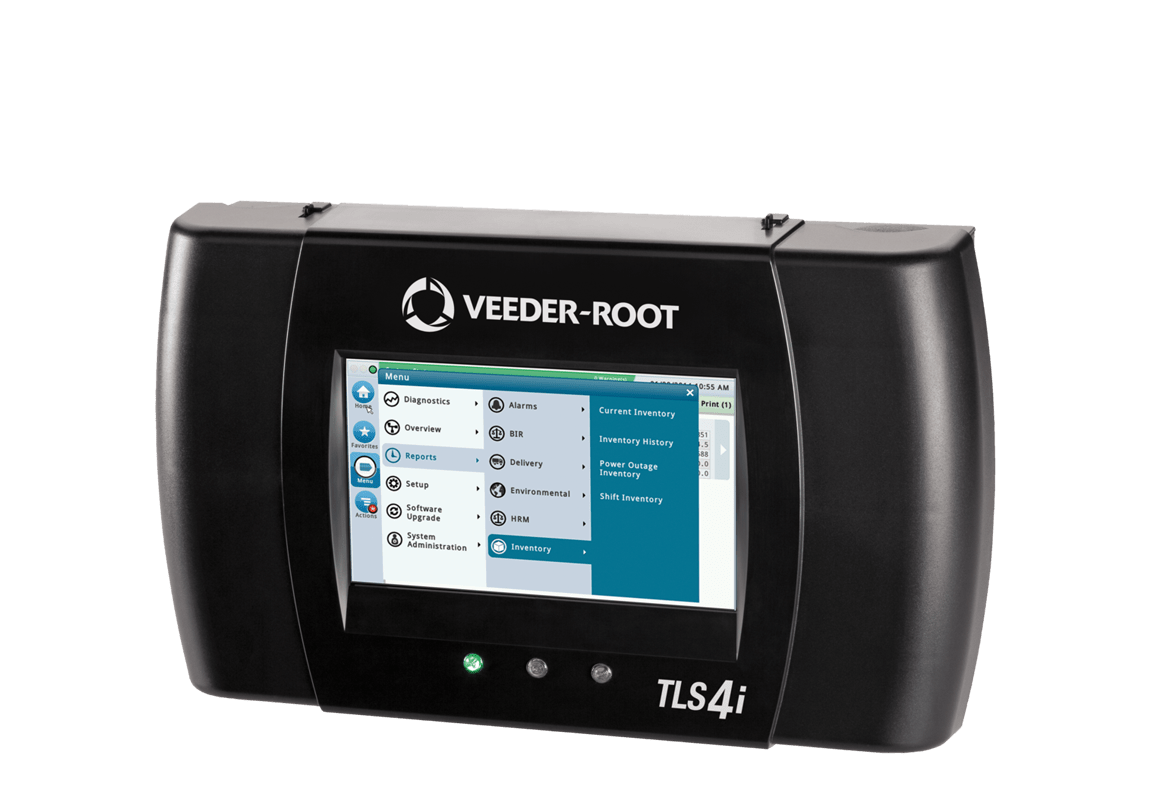

TLS4i / TLS4c Automatic Tank Gauge
Real-time access to accurate inventory data
The TLS4i and TLS4c Automatic Tank Gauges (ATG) have the same graphical user interface as the TLS-450PLUS tank gauge, increasing technician familiarity for quick setup using the easy-to-navigate color touch screen. Using the TLS4i or TLS4c tank level sensors eliminates manual dipping while providing a state of the art interface with a web-based system, streamlining your wet stock management.
Accurate reconciliation
Avoid manual reconciliation variance caused by temperature, delivery shortages, tank tilt, stick inaccuracy, and leaks. The TLS4i and TLS4c tank monitors provide real-time details of delivery start and end times, temperature, volume, height, and water through Standard Delivery Reports.
Access site status on-the-go
Remote Connectivity options that allow anytime, anywhere access to monitor site performance, delivering real-time alerts, compliance reports and variance analysis. Smart communication settings for notifications of pre-programmed events by email or fax.
Secure data handling
Customized User Access enables the configuration and deployment of company specific security controls and procedures. SSH (Secure Shell) cryptographic network protocol utilized to ensure secure access to remote machines.
User friendly operation
Compatible with existing Veeder-Root sensors and probes and includes easy to use customized home screen and favorites save operator response time. Stores your data for up to 3 years to protect critical information.
Remote Connectivity Options for the TLS4i and TLS4c ATG
WEB-ENABLED
Take action to resolve on site issues remotely by connecting to settings and diagnostics on your automatic tank gauge using the web-enabled feature. View your site's status, run reports and make adjustments without being on site.
Learn More
THE REMOTE VIEW
THE REMOVE VIEW application provides a real-time connection to fuel inventory and alarms. This app is available for Android and Apple iOS and is formatted specifically for a better experience on tablets for in store for site personnel.
Learn More
THE PLUS VIEW
THE PLUS VIEW is a free mobile app for Android and Apple iOS that connects you directly to tank gauge data no matter where you are. Now Managers and owners can easily monitor their fuel site inventory and alarms while they are off site.
Learn More
Product Form
| TLS4 Automatic Tank Gauge | |||
| Part Number | Description | Notes | |
| 0333434-001 | TLS4 Application Software, 12 Universal Inputs | Must order one per console | |
| 0860190-020 | TLS4 Console, Color Touch Screen Display, EDIM, UL | ||
| 0860190-010 | TLS4 Console, No Display, EDIM, UL | ||
| 0860190-120 | TLS4 Console, Color Touch Screen Display, CDIM, UL | ||
| 0860190-110 | TLS4 Console, No Display, CDIM, UL | ||
| TLS4B Automatic Tank Gauge | |||
| Part Number | Description | Notes | |
| 0333435-001 | TLS4B Application Software, 6 Universal Inputs | Must order one per console | |
| 0860196-020 | TLS4B Console, Color Touch Screen Display, EDIM, UL | ||
| 0860196-010 | TLS4B Console, No Display, EDIM, UL | ||
| Software Enhancements | |||
| Part Number | Description | Notes | |
| 0333410-015 | Static In-Tank Leak Detection (SLD), for USTs only | Feature Enhancement Software for TLS4 and TLS4B | |
| 0333410-006 | Continuous Statistical Leak Detection (CSLD), for USTs only | Feature Enhancement Software available for TLS4 only | |
| 0333410-012 | Business Inventory Reconciliation (BIR)/Hourly Reconciliation Mode (HRM)/Accuchart | Feature Enhancement Software for TLS4 and TLS4B | |
| 0333410-018 | Timed Sudden Loss Detection | Feature Enhancement Software for TLS4 and TLS4B |
Next Level Tank Gauge Security
With frequent software updates, segmented and partitioned ports, custom user access, and an iterative development processes built around maintaining security, the TLS4i / TLS4c Automatic Tank Gauges are designed to keep your data secure.
TLS4i Automatic Tank Gauge Specifications
|
Number of Tanks Monitored |
4 |
|
Inputs |
12 per console |
|
Sensors |
Up to 12 of any one type |
|
Optional Testing |
|
|
Inventory Data |
Stored |
|
Reports |
Up to 3 Years |
|
Alarms |
Up to 3 Years |
|
History |
Up to 3 Years |
|
Sensor Status |
Up to 3 Years |
|
Printer |
Optional |
|
Email Capability |
Built-in |
|
Universal Sensor Module |
Included |
|
Storage Temperature Range |
-40°F to 158°F (-40°C to 70°C ) |
|
Operating Temperature Range |
32°F to 109°F (0°C to 40°C) |
|
Additional Monitoring Capabilities |
Phase Separation, Density |
TLS4c Automatic Tank Gauge Specifications
|
Number of Tanks Monitored |
2 |
|
Inputs |
6 per console |
|
Sensors |
Up to 6 of any one type |
|
Optional Testing |
|
|
Inventory Data |
Stored |
|
Reports |
Up to 3 Years |
|
Alarms |
Up to 3 Years |
|
History |
Up to 3 Years |
|
Sensor Status |
Up to 3 Years |
|
Printer |
Optional |
|
Email Capability |
Built-in |
|
Universal Sensor Module |
Included |
|
Storage Temperature Range |
-40°F to 158°F (-40°C to 70°C ) |
|
Operating Temperature Range |
32°F to 109°F (0°C to 40°C) |
|
Additional Monitoring Capabilities |
Phase Separation, Density |
Documents
- TLS4 Series Site Preparation Manual (577014-022)
- TLS4 Series Quick Start Guide (577014-034)
- TLS4 Series Software and Hardware Upgrade and Replacement (577014-043)
- TLS4 Series Troubleshooting Manual (577014-058)
- TLS4 Series Alarm Troubleshooting Manual (577014-060)
- TLS-450PLUS/TLS4 Consoles Vapor Collection Monitoring: VaporIX Install, Setup And Troubleshooting (577014-363)
- TLS-450PLUS/TLS4 Operator's Manual (577014-110)
