CARB Certified Vapor Recovery

Veeder-Root’s California Air Resources Board (CARB) certified In-Station Diagnostics (ISD) system provides the most accurate vapor recovery detection available in the industry.


The Veeder-Root ISD system continuously monitors the vapor recovery equipment, maintains test records, provides test reports, and generates warnings or alarms following equipment failure. It can now be added to the TLS-450PLUS console, which provides remote access and enhanced security, in addition to the latest features not available on legacy TLS consoles.

Meet Compliance Requirements

  • CARB certified to meet all ISD performance requirements as defined by CP-201, including at least a 95% probability of failure detection while operating at no more than a 1% probability of false alarms
  • CARB certified with the following equipment: Veeder-Root Carbon Canister, Healy Clean Air Separator, ARID Permeator, and HIRT Processor
  • CARB certified with all approved hanging hardware
  • Flexible ISD solution certified with multiple Vapor Processor configurations



The Most Installed ISD Solution

In California, ISD is required on all gasoline dispensing facilities with an annual throughput over 600,000 gallons. Whether assist or balance vapor recovery, over 90% of California customers have selected Veeder-Root’s ISD system. New stations select the Veeder-Root balance ISD solution due to simpler nozzle alarm requirements.

Veeder-Root’s ISD supports a variety of vapor processor configurations and all certified vapor recovery nozzles. Flexible shutdown solutions allow customers to choose between Submersible Turbine Pump (STP) shutdown, single dispenser shutdown, or use both configurations to maximize site uptime.

System Components

  • Vapor Flow Meter – Provides ISD with the volume of vapor recovered during vehicle refueling for continuous vapor collection monitoring

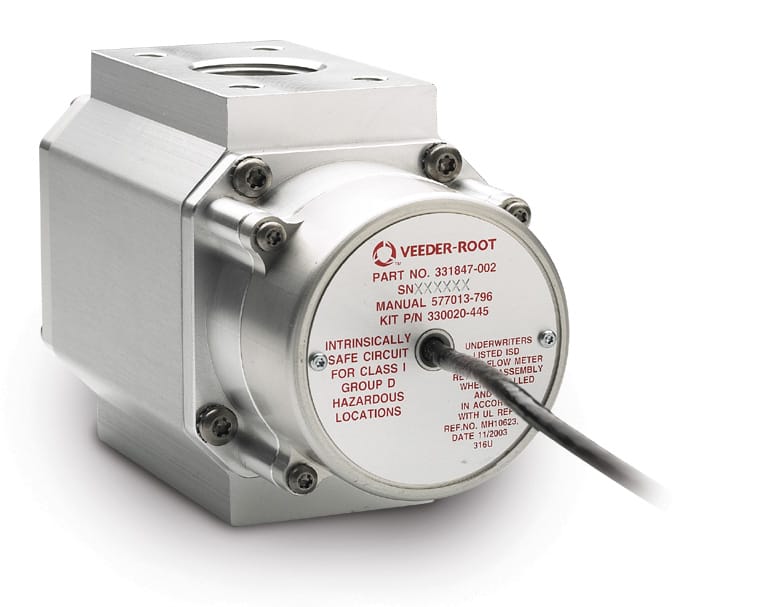

    • Assist Vapor Flow Meter – Designed to withstand the harsh vapor recovery environment found in systems with vapor vacuum pumps
    • Balance Flow Meter – Designed for use in pressure sensitive balance systems to maintain accuracy and minimize false alarms

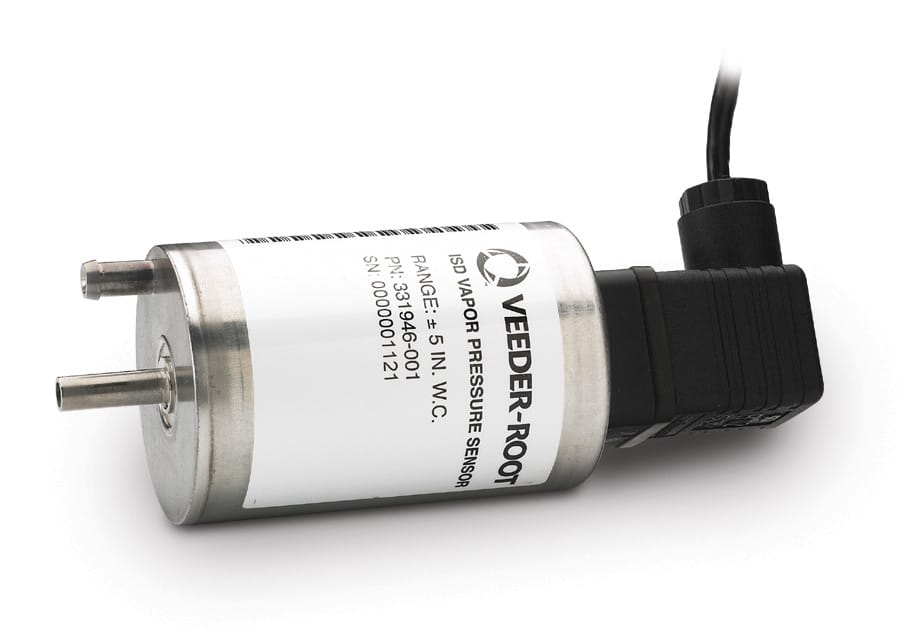

  • Vapor Pressure Sensor – Provides ISD with tank ullage pressure for vapor containment leakage and overpressure monitoring
  • ISD Software Enhancement Feature – Unlocks the ISD software in the TLS console to provide continuous vapor recovery monitoring

Cost Effective Solution

The TLS-450PLUS console provides an expanded, advanced feature set at a lower price point than the TLS-350 console without needing to replace existing probes or sensors*.

  • ISD sensors can share wiring conduit with other Veeder-Root Intrinsically Safe (IS) sensors
  • Simple installation, compatible with all dispensers
  • Single dispenser or STP shutdown to maximize site uptime
  • Wireless option available

* With the exception of PLLD Sensors



TLS-450PLUS Monitoring System Requirements

  • Universal Sensor Module (USM), Universal Input/Output Interface Module (UIOM), RS-232/485
  • Dispenser Interface Module (DIM)
  • ISD Software Enhancement
  • Site Shutdown Control Hardware
ISD Warnings and Alarms

Assist ISD

Part NumberDescriptionRequirement
0330020-445Assist Vapor Flow Meter Kit1 per Dispenser
0330020-515Wired Vapor Pressure Sensor Kit 11 per Site
0861190-201Wireless Vapor Pressure Sensor Kit 2
0330020-715Vapor Pressure Sensor Site Start-up Kit 3
0332812-001USM Interface for Probes, Sensors, and DPLLD 4Interface for Air Flow Meters,
Pressure Sensors
0332813-001UIOM for Relay Control and Input Signal Monitoring **Supports up to 5 STPs

Balance ISD

Part NumberDescriptionRequirement
0330020-585Balance Vapor Flow Meter Kit1 per Dispenser
0330020-515Wired Vapor Pressure Sensor Kit 11 per Site
0861190-201Wireless Vapor Pressure Sensor Kit 2
0330020-715Vapor Pressure Sensor Site Start-up Kit 3
0332812-001 / or 0332812-006USM Interface for Probes, Sensors, and DPLLD 4Interface for Air Flow Meters, Pressure Sensors, and Carbon Canister Control Valve
0332813-001UIOM for Relay Control and Input Signal Monitoring ****Supports up to 5 STPs

Optional ISD Components

Part NumberDescriptionRequirement
0333564-00110-Amp Relay Module for TLS-450PLUS1 per Console, up to 6 Dispensers
0330020-630Vapor Pressure Sensor Kit for Mounting on Vent Stack *** 11 per Console
0330020-716Universal Enclosure Box1 per Pressure Sensor when mounted on Vent Stack
0330020-717Vapor Pressure Sensor Drying Tube KitReplacement Part

** Required to ensure STP pump control or ARID Permeator Status
*** 0330020-630 includes the Vapor Pressure Sensor so it does not need to be ordered separately, if ordering this kit
**** Required to ensure STP pump control or HIRT Processor Status

1 Can only be used on wired installations
2 Can only be used on wireless installations
3 Required when ordering 0861190-201 sensor for wireless installations
4 At least one 16 Channel USM with Atmospheric Pressure Module (ATM) is required for Carbon Canister applications. Non-Carbon Canister applications can use the standard USM 0332812-001.


Specifications

The latest system requirements for Veeder-Root's In-Station Diagnostic (ISD) are available on the California Air Resources Board website. Please select the appropriate CARB Executive Order for additional information.

CARB Executive OrderResources
VR-202 Vacuum AssistCARB Website for Executive Order VR-202
VR-204 BalanceCARB Website for Executive Order VR-204

The site owner and installing contractor are responsible for understanding and abiding by local permit conditions. Consult your local jurisdiction for software requirements prior to any ISD installation. Failure to do so may result in violations, fines, and other associated costs.
