The EMR4 is designed to be installed or integrated with any meter as a custody transfer approved electronic meter register.
This system is comprised of two core components - the Display Head and IB Box - along with a series of accessories that allow users to configure a system that meets their specific needs on the delivery vehicle, loading rack, or other liquid dispensing application.
EMR4 DISPLAY HEADS

EMR4 Meter-Mounted Display Head - English
The EMR4 Meter-Mounted Display Head is for installation on top of the meter. The housing is the exact same footprint as both a mechanical register and its EMR3 Meter-Mounted Display Head predecessor. The display head has an ultra-bright WHITE LED backlight to easily see the screen and is built to withstand extreme heat and constant sunlight as well as exposure to harsh and abrasive chemicals. It is UL/cUL, ATEX, and IECEx approved. Part numbers for French and Spanish versions are also available.
Part Number: 0845593-001

EMR4 Panel-Mounted Display Head - English
The EMR4 Panel-Mounted Display Head (also referred to as the Remote Display Head) allows for customizability and flexibility in both mobile and stationary installation applications. It is for installation with an external pulser and when it will be panel mounted or when being used as a repeater display and installed on a lift deck, in the cab of a truck, in an office, or any other remote location. The display head has an ultra-bright WHITE LED backlight to easily see the screen and is built to withstand extreme heat and constant sunlight as well as exposure to harsh and abrasive chemicals. It is UL/cUL, ATEX, and IECEx approved. Part numbers for French and Spanish versions are also available.
Part Number: 0845593-002
EMR4 INTERCONNECT (IB) BOXES
The EMR4 IB Box was designed with the installer in mind. Removable connectors, removable hole plugs, auxiliary power/ground ports, and wiring labels on the door make installing and wiring the IB box easy. It provides an intrinsically-safe barrier for connections to one or two display heads located at dispensing points in the hazardous area. IB boxes can accept either 12 or 24 Vdc input power. An installation kit with 35' communication cable, meter connection adapters, and installation hardware along with diode suppressors are included.
UL/cUL Part Number: 0845790-001
ATEX, IECEx Part Number: 0845760-001
Installation Kits
Select your Installation Kit based on who the meter manufacturer is that the EMR4 will be installed on. Each kit includes a 35’ cable and meter connection adapters. If you have a Dual-Meter System, two installation kits are required. One kit available FREE with purchase of an IB Box.
Part Number | Description |
0845900-304 | Tokheim, Daniels, Energy Flow Systems (Donavan) |

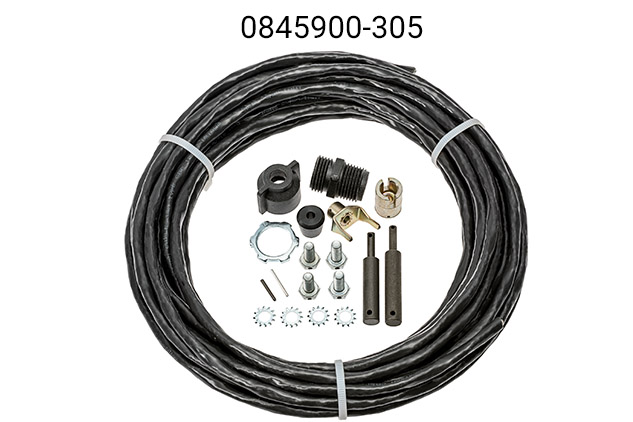

0845900-305 | Smith Meter, Satam, Avery Hardoll, Petrol Instruments, and Alfons Haar |
0845900-306 | LC, TCS, SAMPI, Tuthill |
0845900-308 | Neptune and Liquatech (1.5” to 4” Existing w/ Mech. Temp. Comp.) |
0845900-309 | Neptune and Liquatech (1.5” to 4” Existing w/o Mech. Temp. Comp.) |
0845900-310 | Neptune and Liquatech (¾” to 1” Existing w/ Mech. Temp. Comp.) |
0845900-327 | Brooks / Brodie |
DUAL METER SYSTEM RETROFIT KITS
Select a second installation kit for Dual Meter Systems only. The 35' cable from the Display Head to the IB Box is sold separately.
Part Number | Description |
0845900-004 | Tokheim, Daniels, Energy Flow Systems (Donavan) |

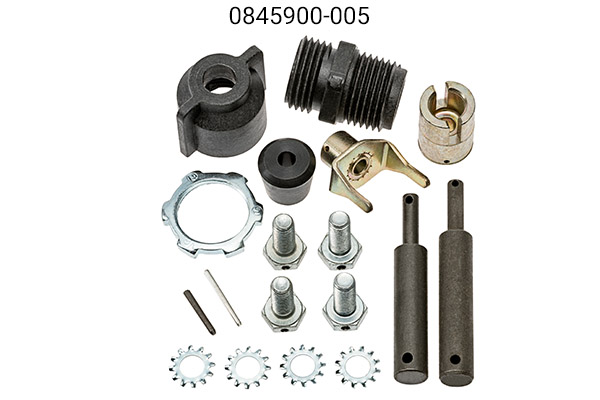

0845900-005 | Smith Meter, Satam, Avery Hardoll, Petrol Instruments, and Alfons Haar |
0845900-006 | LC, TCS, SAMPI, Tuthill |

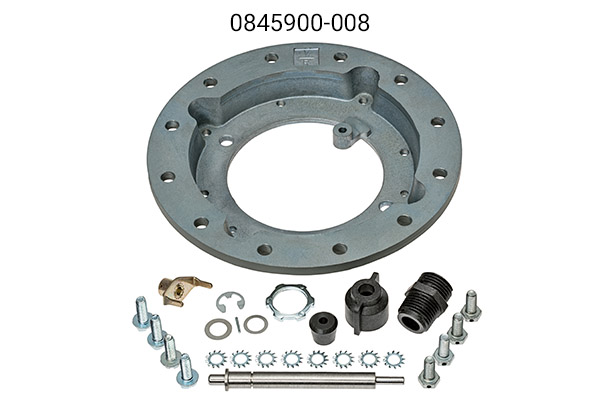

0845900-008 | Neptune and Liquatech (1.5” to 4” Existing w/ Mech. Temp. Comp.) |

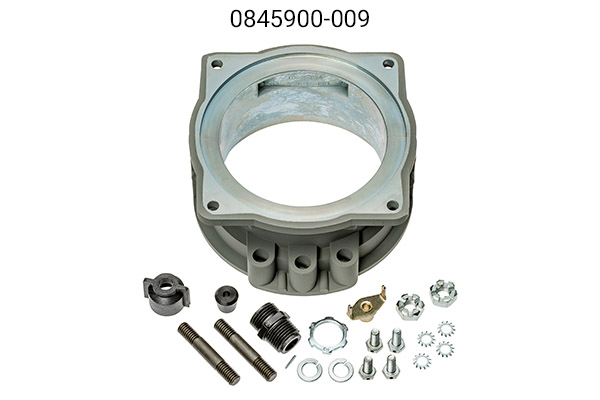

0845900-009 | Neptune and Liquatech (1.5” to 4” Existing w/o Mech. Temp. Comp.) |
0845900-010 | Neptune and Liquatech (¾” to 1” Existing w/ Mech. Temp. Comp.) |
0845900-027 | Brooks / Brodie |
0845900-106 | Cable 4- Wire with drain, and armored 35’ |
REMOTE PULSER KITS
Remote/Panel-mounted display heads are driven by an external pulser.
Part Number | Description |
0845900-504 | UL, Top Mount Kit – Includes pulser, mounting plate and 20' of communication cable |

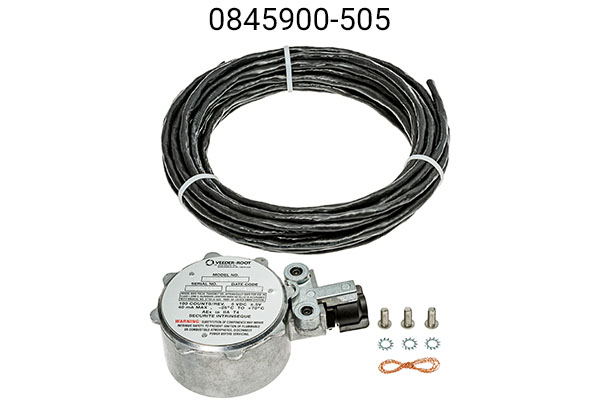

0845900-505 | UL, Front Mount Kit for TCS-OEM Applications – Includes pulser and 20' of communication cable |
0845900-506 | UL, Front Mount Kit for Special Applications – Includes pulser and 20' of communication cable |
0845900-552 | ATEX, Top Mount Kit – Includes pulser, mounting plate and 20' of communication cable |
0845900-553 | ATEX, Front Mount Kit for TCS-OEM Applications – Includes pulser and 20' of communication cable |
0845900-554 | ATEX, Front Mount Kit Special Applications – Includes pulser and 20' of communication cable |
PRINTERS

Epson Roll Printer
Part Number: 0845900-067

Epson® Slip Printer
The optional slip printer can be connected directly to the EMR4 IB Box. Its small size makes it ideal for both mobile and stationary applications to print delivery tickets. If purchasing the EMR4 Display Head or IB Box, the cable is included upon request.
Part Number: 0845900-066

Printer Cable
10' Printer Cable Part Number: 0845900-013
35' Printer Cable Part Number: 0845900-071
Epson® Slip Printer Kit
The Epson Slip Printer Kit includes a slip printer, cable and cord grip. Only select this if not purchasing the EMR4 Display Head or IB Box.
Part Number: 0845900-020
Valves

2-Stage Solenoid Valve
The 2-Stage Solenoid Valve enables preset deliveries by quantity or price. It is normally closed.
Part Number: 0370020-059

3-Way Solenoid Valve - Propane
The 3-Way Solenoid Valve enables preset deliveries by quantity or price. It is normally closed, and installed and operated in the highly combustible environment of a LPG tank. Approved for UL markets.
Part Number: 0846000-028

Diode Suppression Kit for Solenoid Valves
If not purchasing 2-Stage Solenid Valve (p/n 0370020-059), one kit per solenoid.
Part Number: 0846000-022
DataLink Wireless Kits
The easy to use Veeder-Root DataLink PC-based software provides a data management system that communicates via wireless modems to and from the EMR4. DataLink sends transaction data from the meter register to the server automatically, giving you better data going into the back office more frequently. This system generates automatic reports that can be viewed anywhere in the world via from any device.

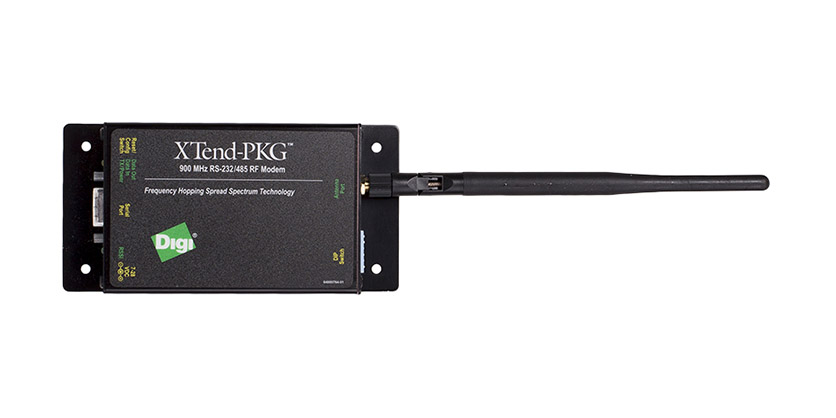

EMR4 DataLink Office Kit - 900 MHz Modem
One office wireless modem kit is required per location. It includes a wireless USB modem with standard antenna, regular USB Cable for connecting the modem to the office PC, Quick Help Guide, and installation manual.
Part Number: 0845900-030
EMR4 DataLink Truck Kit with Keypad - 900 MHz Modem
The truck wireless modem kit with keypad includes a wireless modem with standard antenna, special RS-232 cable for connecting to Interconnect Box, cord grip and Velcro patch, installation manual, and optional keypad for EMR4 Display Head.
Part Number: 0845900-031
EMR4 DataLink Truck Kit without Keypad - 900 MHz Modem
The truck wireless modem kit without keypad includes a wireless modem with standard antenna, special RS-232 cable for connecting to Interconnect Box, cord grip and Velcro patch, and installation manual.
Part Number: 0845900-032
DataLink Kit for TLS-3XX Consoles
The TLS-3XX Consoles Interface Kit includes a wireless modem with standard antenna, special 9-pin connector for modem, special 25-pin connector for console, 25-foot ribbon cable for console to modem connection, power supply for modem, and installation/quick help manual.
Part Number: 0845900-037
DataLink Kit for TLS-4XX Consoles
The TLS-4XX Consoles Interface Kit includes a wireless modem with standard antenna, 9-pin connectors for modem and console, 25-foot ribbon cable for console to modem connection, power supply for modem, and installation/quick help manual.
Part Number: 0845900-040
DataLink Kit for Direct Serial Connections to a PC from EMR IB Box Network
The DataLink Direct Connect Kit is required, if connecting to a network of Interconnect Boxes directly rather than using modems. Plugging in the USB key from the kit into the PC will enable the Direct Connect DataLink function.
Part Number: 0845900-038
EMR4 SPARE PARTS

Emergency Stop Switch
The optional Emergency Stop Switch should be installed on a truck near the display head for quick access during a delivery. Push in the button to stop flow. Pull out the button to resume flow.
Part Number: 0845900-021

Right-Side Keypad for Meter-Mounted Display Head
Part Number: 0845900-014

Left-Side Keypad for Meter-Mounted Display Head
Part Number: 0845900-064

Temperature Probe Kit
Required for Temperature Compensation
Part Number: 0845900-302

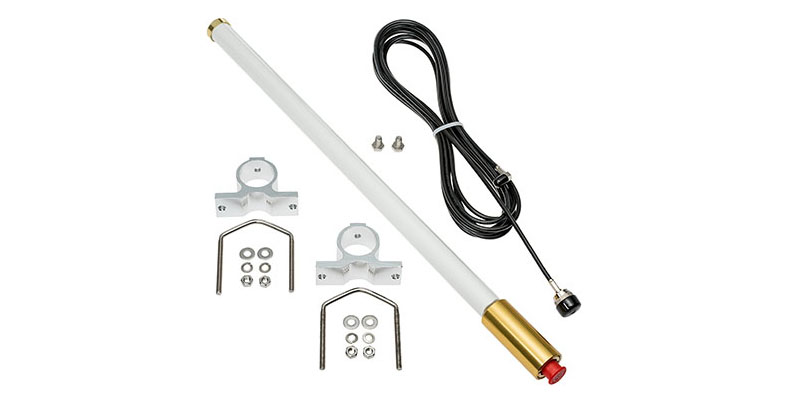

High Gain Antenna
Part Number: 0845900-033

Encoder Spare Kit
Part Number: 0845900-025

RS-232 Serial Communication Cable
DB 9 connector with 10' cable.
Part Number: 0330020-432

Corner C&C Switch
Part Number: 0845900-018

Remote C&C Switch
Part Number: 0845900-076

Display Module Only – English
Part Number: 0845900-068

Display Module Only – French
Part Number: 0845900-069

Display Module Only – Spanish
Part Number: 0845900-070

Encoder Spring
Part Number: 0845900-072

Thermowell Group
UL/CUL Listed, Canadian W&M Approved.
Part Number: 0331373-001

Remote Display Seal Screw
Part Number: 0845900-075

Swivel Assembly without Coupling
Uses meter specific coupling.
Part Number: 0065142-160

Swivel Adapter for EMR4
Requires swivel 0065142-160 or existing swivel.
Part Number: 0070857-196

Cord Grip
Part Number: 0845900-073

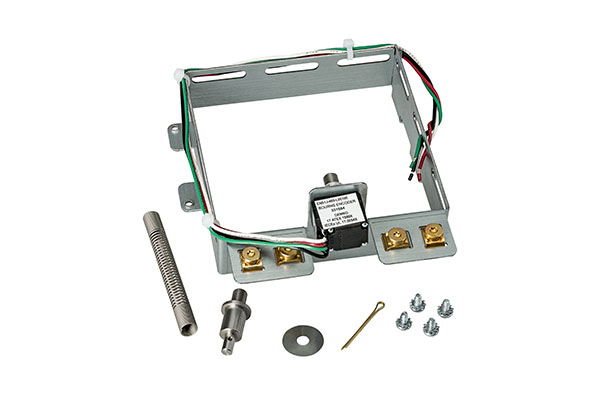

Pulse Generator Kit
Includes pulse encoder and mounting bracket.
Part Number: 0845900-015

Mounting Bracket for Remote Display
Part Number: 0845900-024

Cable, 50' 4-Wire 2-PR, 18 AWG Shielded
Part Number: 0846000-100

Cable 4- Wire with Drain and Armored
6' Cable Part Number: 0846000-107
35' Cable Part Number: 0846000-106
100' Cable Part Number: 0846000-101
200' Cable Part Number: 0846000-102
300' Cable Part Number: 0846000-103
400' Cable Part Number: 0846000-104
500' Cable Part Number: 0846000-105
1000' Cable Part Number: 0846000-112
