The components of the HydrX™ Fuel Conditioning System are customized based on the unique configuration of your tank. The Water Intake Device (WID) must be installed with the tilt of the tank. In order to optimize the functionality of the WID, precise tank measurements are required. Once the HydrX Fuel Conditioning System Site Inspection Guide (576047-355) has been completed, select the configuration below that best matches your WID installation based on tank tilt.
IMPORTANT: This configurator is designed to support standard tanks from Xerxes, Containment Solutions Incorporated, and ZCL. For custom or steel tanks, consult Veeder-Root Technical Support.

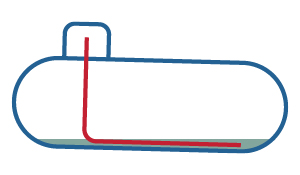

Single compartment tank, tilted towards the annular space rib.

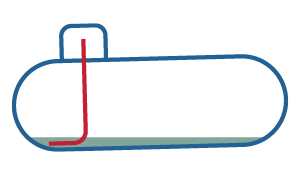

Single compartment tank, tilted away from the annular space rib.

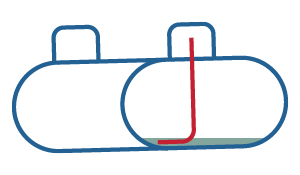

Two compartment tank, installed in the base tank, tilted towards the end tank.

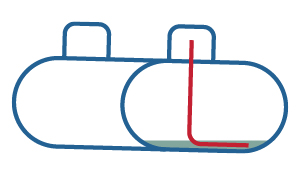

Two compartment tank, installed in the base tank, tilted away from the end tank.

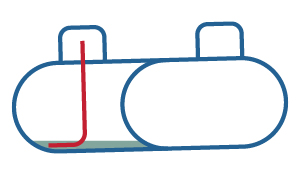

Two compartment tank, installed in the end tank, tilted away from the base tank.

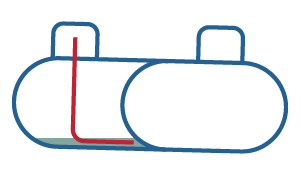

Two compartment tank, installed in the end tank, tilted towards the base tank.
