Non-Discriminating Stand-Alone Dispenser Pan Sensor
The Non-Discriminating Stand-Alone Dispenser Pan Sensor is designed to detect liquid in a dispenser pan containment. When fluid is detected in the dispenser pan, this sensor shuts down (removes) AC power to the dispenser without the need for additional relays, circuitry, wiring, or an automatic tank gauge system. The separate sensor control interface ensures intrinsically-safe integrity in a Class 1 Div. 1 Group D; Class 1 Zone 0 IIA hazardous area.
Shut Down AC Power to the Dispenser when Fluid is Detected
The Non-Discriminating Stand-Alone Dispenser Pan Sensor immediately shuts down AC power to the dispenser when fluid is detected in the dispenser pan. Fail-safe design features eliminate the possibility of missing a leak condition. Easily installed in most dispenser pans and dispenser sumps, the stand-alone sensor functions with most manufacturers’ dispensers.
Accurate and reliable, the stand-alone dispenser pan sensor withstands the harshest environments.
Key Features
- Shuts down dispenser when it detects 1-1/2” of liquid at the base of the sensor
- Latching alarm circuitry ensures dispenser can’t be restarted until hazardous condition has been corrected
- Connects directly to dispenser wiring
- Controls most manufacturer’s dispensers
- Includes Installation Kit (P/N 0330020-024)
Product Form
Part Number | Description |

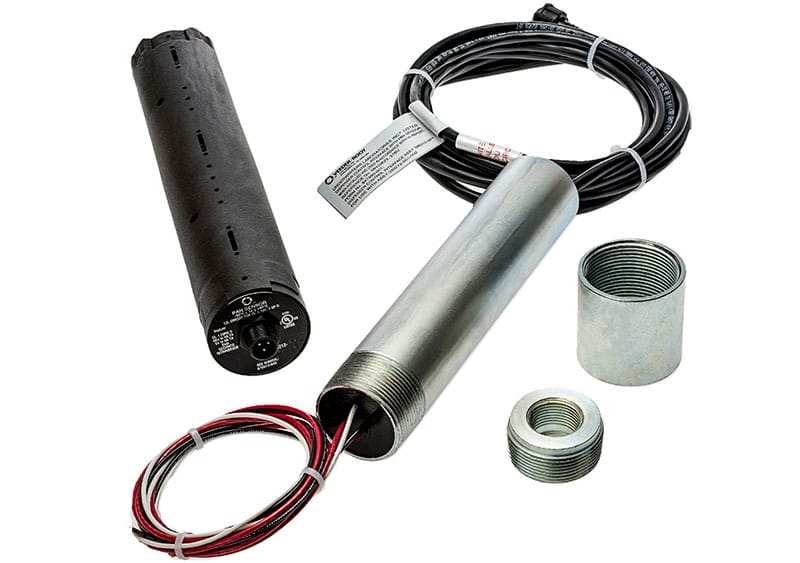

0847990-001 | Non-Discriminating Dispenser Pan Sensor with Dispenser Control Interface, UL |
0330020-012 | Universal Sensor Mounting Kit (Sold Separately) |
Specifications
Fuel Compatibility | Gas, Diesel, Kerosene, Jet Fuel, Aviation Gas, E15, Bio-Diesel 20, Green Diesel, Waste Oil, Motor Oil |
Alarm Notification | Normal: Sensor in Normal State – No liquid detected |
Liquid Detected: Remove power to the dispenser | |
Sensor Out: Remove power to the dispenser | |
Sensor Dimensions | 11.6” (29.4cm) high, 2.2”(5.6cm) in diameter |
Control Interface Dimensions | 9.4” (23.9cm) high, 2.2” (5.6cm) in diameter |
Operating Principle | Reed Switch /Float |
Operating Temp | -32 to +140°F (0 to +60°C) |
Cable Length | 5 Feet |
