Connect tank gauge data to building automation systems

The MODBUS / BACnet Gateway is an added component used to connect Veeder-Root automatic tank gauge consoles to building automation systems.

The Veeder-Root MODBUS / BACnet Gateway is an add-on component for Veeder-Root TLS Automatic Tank Gauges (ATG). It supports multiple protocols to communicate ATG information to building automation systems. Paired with a Veeder-Root tank monitoring system, the MODBUS / BACnet Gateway relays real-time tank gauge data including tank inventories, sensor performance, liquid alarms, delivery data, and system status.

Product Form

Part Number

Description

Notes

330020-840

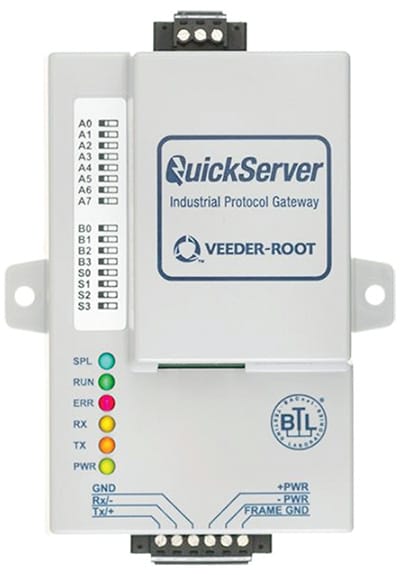

QuickServer Industrial Protocol Gateway for Modbus/BACnet

Does not include power supply. If power supply is needed, order 330020-841 as well

330020-841

QuickServer Industrial Protocol Gateway Power Supply



Key Features

User configurable selection of over 100 unique tank gauge parameters.

  • Gain access to up to 1500 data points from up to 64 tanks,99 single-sensor inputs, 256 general inputs, or any system parameter covering the maximum capacity of any TLS automatic tank gauge

  • RS-485 or Ethernet field protocol support

  • RS-232 communication to the Veeder-Root ATG

  • Onboard Diagnostic LEDs and built-in Web configuration

Specifications

Console Compatibility

  • TLS-450PLUS

  • TLS4i / TLS4c

  • TLS-350 Series

  • TLS-300 Series

Supported Protocols

  • BACnet MS/TP

  • BACnet IP

  • Modbus TCP/IP

  • Modbus RTU

Total Registers

1500 Points

Certifications

  • BTL Mark - BACnet Testing Laboratory

  • CE Certified, FCC Part 15 Class A

  • TUV approved to UL 916, EN 60950-1, EN60950-3, and CSA 22-2 standards RoHS compliant

Operating Temperature Rating

-40 ° C to + 75 ° C / -40 ° F to +158 ° F

Humidity Rating

5% to 90% non-condensing

Power Requirements

120 / 240VAC 50-60 Hz

Dimensions

4.5” x 3.2” x 1.6”

Weight

0.4 lbs
